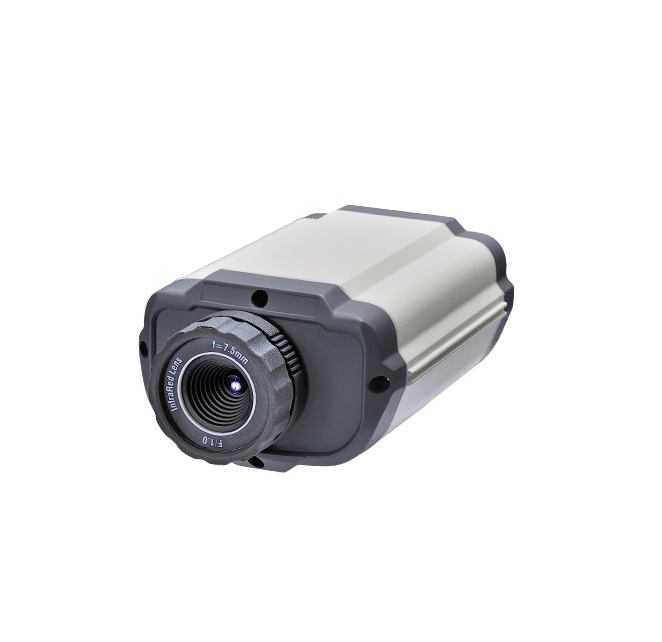

CEM CAM640 ຮູບພາບຄວາມຮ້ອນ (-20~400°C, 0.45 mrad, 640x480px)
Imaging and optical data
Field of View (FOV)/Minimum focus distance: 24.6°x 19.8°/0.3m
Spatial resolution (IFOV): 0.45 mrad
Thermal sensitivity/NETD: < 0.05°C /50mK
Image Frequency: 50HZ
Focus mode: Manual
Focal length: 38mm
Focal Plane Array (FPA) / Spectral range: Uncooled microbolometer / 8–14 µm
IR Resolution: 640x480
Image pressentation
Image modes: IR image only
Color palettes: IR image only
Measurement
Object temperature range: –20°C to +150°C (–4°F to +302°F)
0°C to +400°C (+32°F to +752°F)
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Data communication interfaces
Interfaces: USB, composite video
USB: Remote contro
Video out: Composite(PAL and NTSC)
Ethemet type, connector type, video steaming:
Alarm output: 2 relay output
Power system
Input voltage: DC 9V to 12V
Options Lens
11mm: 47.1°x 36.2°
22mm: No
33mm: No
38mm: 14.4°x 10.8°
