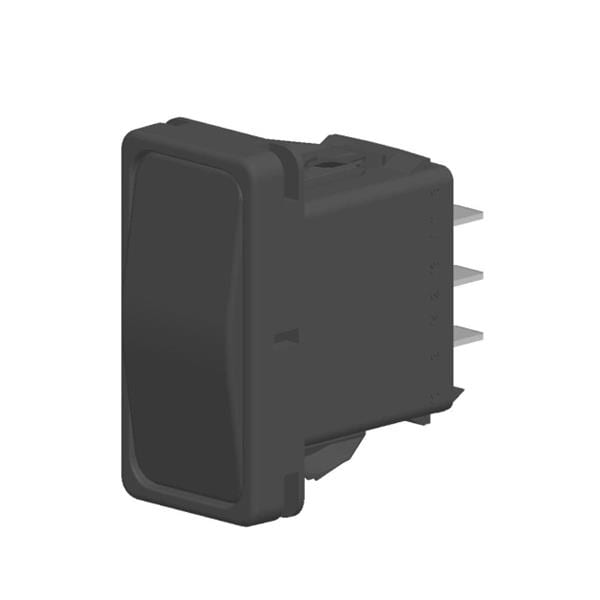

Carling Technologies VJD2S001-6ZZ00-000 Contura Switch VJD2S001-6ZZ00-000

Life: 100000 Cycle

Width: 20.82 mm

Height: 38.25 mm

Length: 34.79 mm

Actuator: Rocker

IP Rating: IP66, IP68

Illuminated: Non-Illuminated

Contact Form: DPST

Panel Cutout: 36.83 mm x 21.08 mm

Mounting Type: Snap In

Terminal Seal: Sealed

Current Rating: 20 A

Mounting Style: Panel Mount

Actuator Length: 48.51 mm

Contact Plating: Silver

Panel Thickness: 0.032 in to 0.25 in

Switch Function: ON - OFF - ON

Housing Material: Polyester

Actuator Material: Nylon

Termination Style: Quick Connect

Voltage Rating DC: 12 VDC

Flammability Rating: UL 94 V-0

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
