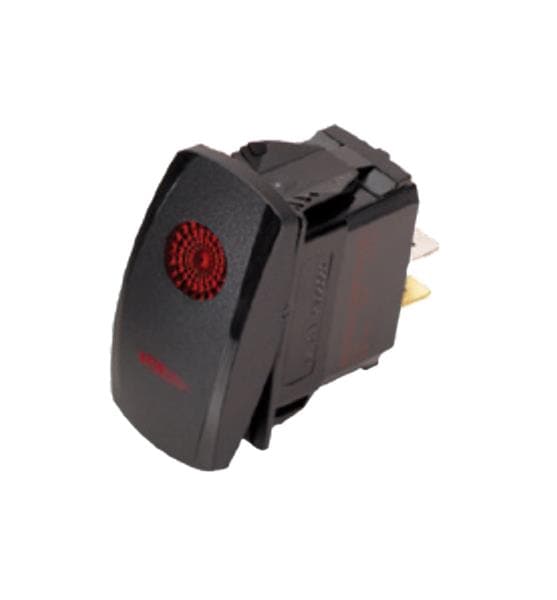

Carling Technologies V8B1AV0B-G8C6G-100 ສະຫນັບສະຫນູນປ່ຽນສະຖານະ Rocker V8B1AV0BG8C6G100

Life: 100000 Cycle

Width: 12.83 mm

Height: 27.4 mm

Length: 48.56 mm

Actuator: Curved Rocker

IP Rating: IP66, IP68

Lamp Type: LED

Illuminated: Illuminated

Contact Form: SPDT

Panel Cutout: 36.83 mm x 21.08 mm

Mounting Type: Snap In

Terminal Seal: Sealed

Actuator Style: Curved Rocker

Current Rating: 15 A

Mounting Style: Panel Mount

Actuator Length: 48.56 mm

Contact Plating: Silver

Switch Function: (ON) - OFF - (ON)

Housing Material: Polycarbonate (PC)

Actuator Material: Thermoplastic Polycarbonate

Termination Style: Quick Connect

Voltage Rating DC: 24 VDC

Illumination Color: Red

LED Supply Voltage: 24 VDC

Flammability Rating: UL 94 V-0

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
