Output
Phases: 1
AC Power: 2000VA
Load Connection Floating neutral (option): Rear panel terminal block /optional Universal front panel sockets

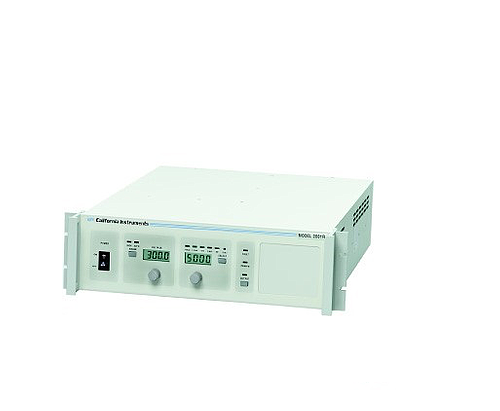

RP Series : Product Specifications
Output : Voltage
High range / Low Range: 0-300 / 0-150 V RMS (except -AV and -LZ options)
Accuracy: ± 0.1 %FS @ 16Hz-100 Hz
Accuracy: ± 0.2%FS @ 100Hz-5000Hz
Resolution: 0.1 V
Load Regulation remote sense: ± 0.1% FS
Line Regulation 10 % Line change: ± 0.02%FS
T.H.D: 16-100Hz 0.5 typ./1.0 max.% (into a resistive load)
Output Noise: < 0.1 V RMS typ.
Output : Frequency (specifications valid from 45 Hz to 500 Hz)
Range: 16 - 5000Hz
Accuracy: ± 0.02%
Resolution
16.0Hz-80.0Hz 0.01 Hz
80.1Hz-800.0Hz 0.1 Hz
800Hz-5000Hz 1Hz
Output : Current
Steady State Current High V range: 6.7 A rms
Steady State Current Low V range: 13.4 A rms
Peak Current High V range: 22.2 A peak
Peak Current Low V range: 44.5 A peak
Input
Line Voltage 2 wire + GND: 107/115V or 208/230V ± 10% V RMS (set by jumper)
Line Current (fused): <35@96V, <30@115V,<15@230V A RMS
Line Frequency: 47 - 440 Hz
Holdup Time: 10 ms
Power Factor: 0.7
Isolation Input/output to Chassis: 1350 V / 2200 V
Please check the datasheet for details
