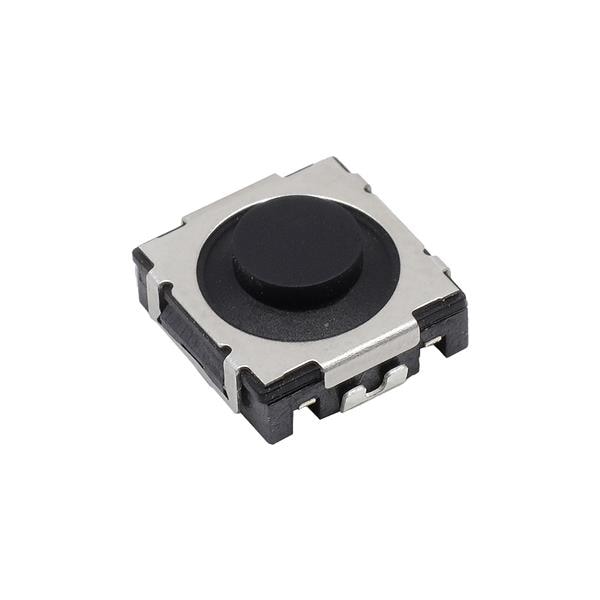

C&K TLS A 070J LFS ປຸ່ມກົດສະຕັກກະທົບດ້ານບູດ, ການເດີນທາງ 0.9 mm, 7 N, 50% ສະຕັກກະທົບ, J Leads, SMT, 8.6 x 8.4 x 3.95 mm, Soft Actuator

Life: 500000 Cycle

Width: 8.4 mm

Height: 3.95 mm

Length: 8.6 mm

Travel: 0.9 mm

Actuator: Round

IP Rating: IP54

Button Size: 4.2 mm

Illuminated: Non-Illuminated

Stem Height: 2.6 mm

Contact Form: SPST

Power Rating: 0.8 VA

Mounting Type: Sealed

Actuator Style: Button

Current Rating: 50 mA

Mounting Style: SMD/SMT

Contact Plating: Silver

Operating Force: 7 N

Switch Function: OFF - (ON)

Termination Style: J Form Lead

Voltage Rating DC: 16 VDC

Mounting Direction: Straight

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
