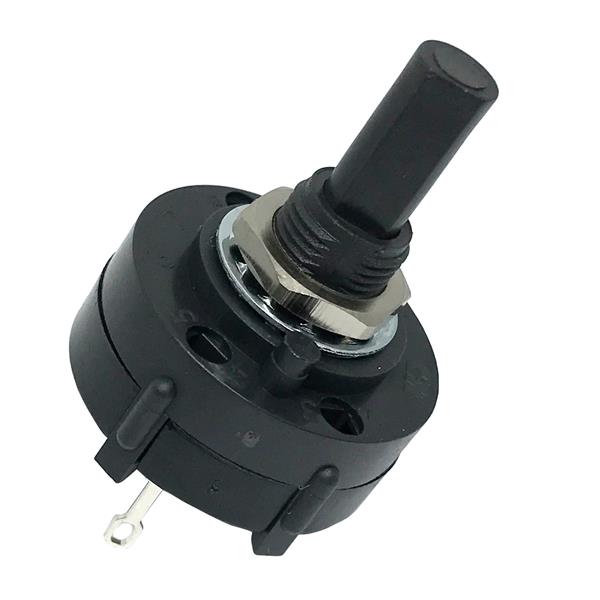

C&K A10003RNCGR Rotary Switches Rotary

Actuator: Flatted

Illuminated: Non-Illuminated

Index Angle: 30 deg

Index Stops: Continuous

Contact Style: Non-Shorting

Mounting Type: Panel Mount

Actuator Style: Flatted - D

Current Rating: 0.4 VA/2.5 A, 350 mA

Actuator Length: 9.5 mm

Contact Plating: Gold over Silver

Number of Decks: 1 Deck

Termination Style: Through Hole

Voltage Rating AC: 20 VAC/125 VAC

Voltage Rating DC: 20 VDC/125 VDC

Number of Positions: 12 Position

Number of Poles per Deck: 1 Pole

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
