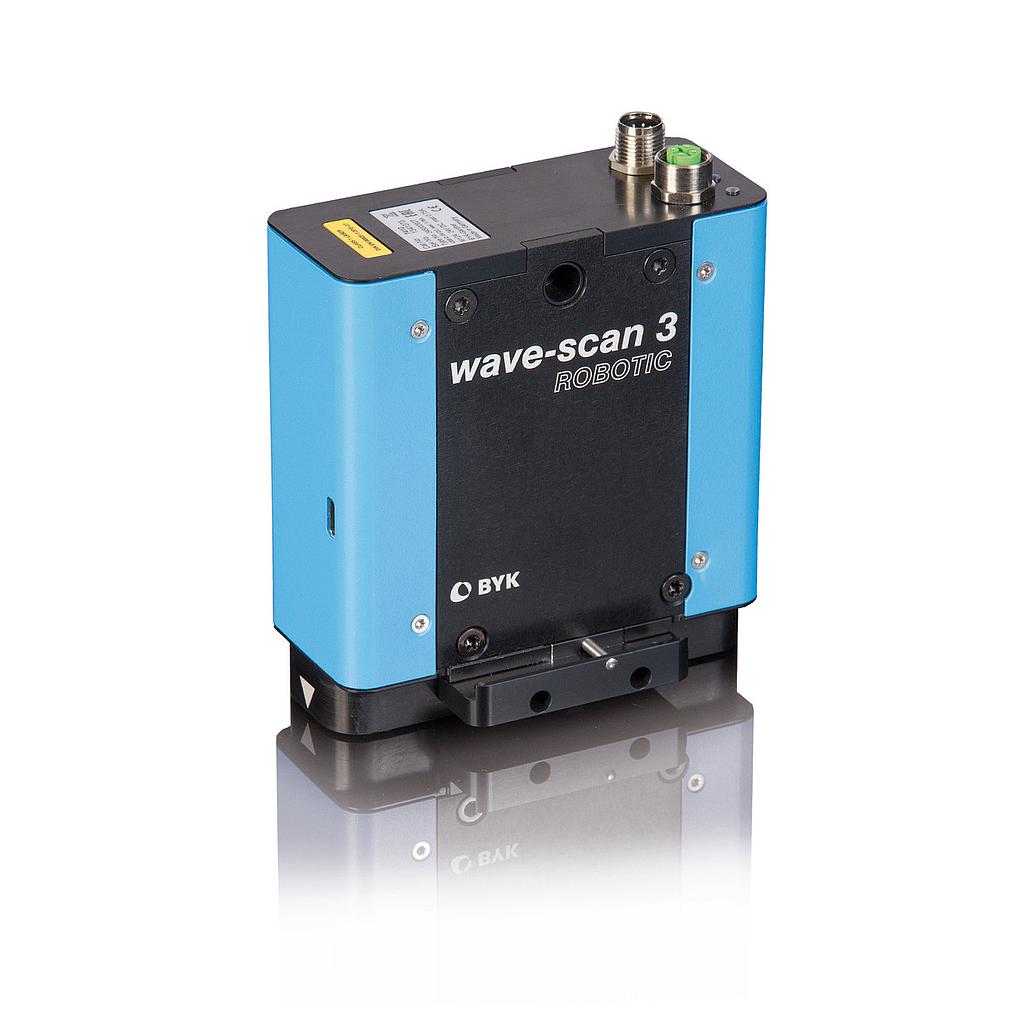

BYK wave-scan 3 ROBOTIC ແມັດປອກເປືອກສີສົ້ມ (High gloss surfaces, du < 40)
Application: High gloss surfaces, du < 40, linear range
Structure Spectrum:
du: < 0.1 mm
Wa: 0.1 to 0.3 mm
Wb: 0.3 to 1 mm
Wc: 1 to 3 mm
Wd: 3 to 10 mm
We: 10 to 30 mm
Repeatability (Std. Dev.): 4% or > 0.4
Reproducibility (Std.Dev.): 6% or > 0.6
Object Curvature: radius > 500 mm
Scan Length: 5 / 10 / 20 cm
Resolution: 375 Points/cm
Min. Sample Size: 35 mm x 150 mm
Distance to Surface: 15 ± 2 mm
Light Source: Laser diode, LED
Laser Energy: < 1 mW (Laser class 1)
Angle to Surface: perpendicular ± 2°
Scan Speed: 50 to 150 mm/sec
Robotic requirements: Vibration-free operation
General
Interface: LAN Ethernet and USB
Power supply: external power supply 9-24 VDC, max. 0.75 A
Weight: 0.55 kg
Weight: 1.2 lb
Operating temperature: 10 - 40 °C
Storing temperature: 0 - 60 °C
Operating temperature: 50 - 104 °F
Storing temperature: 32 - 140 °F
Relative humidity: up to 85 % at 35 °C (95 °F) non-condensing
Dimensions: L x W x H: 11.2 x 6 x 13.1 cm
Dimensions: L x W x H: 4.4 x 2.4 x 5.2 in
Delivery Content
Instrument
Software smart-process with 2 licences
Interface software smart-robotic
Protective Cap
Checking tile (4833)
Set power cable (8m torsion resistant, 10m drag chain cable, 20m oil
resistant)
Set LAN cable (8m torsion resistant, 10m drag chain cable, 20m oil
resistant)
Mounting Kit (hex key, screws, technical drawings)
Manual
USB-Stick with license
Carrying case
2-day training
Certificate
