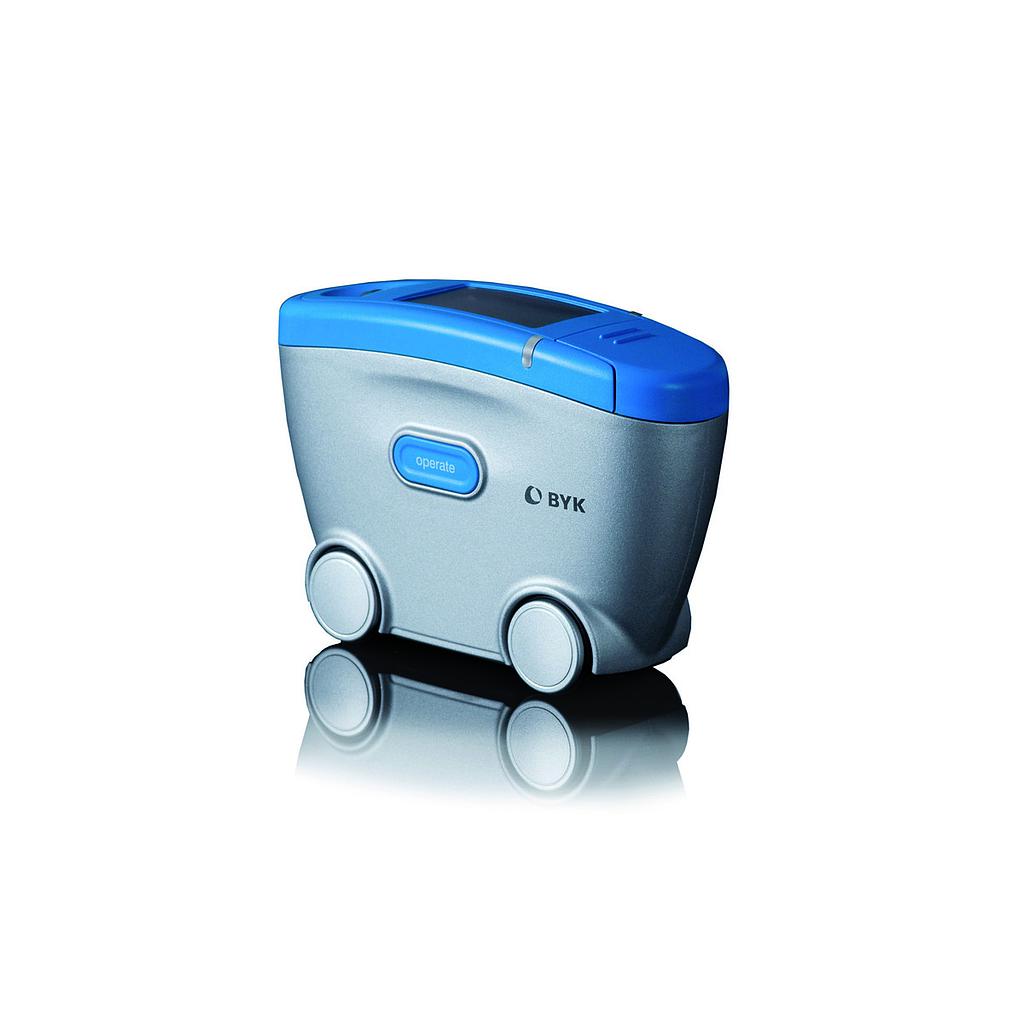

BYK cloud-runner Mottling Meter
Technical Specifications
Cloud Size:
Md: 6 to 13 mm
Me: 11 to 24 mm
Mf: 19 to 42 mm
Mg: 33 to 72 mm
Mh: 57 to 126 mm
Mi: 100 to 200 mm
Repeatability (Std. Dev.): 5% or > 0.5
Reproducibility (Std.Dev.): 8% or > 0.8
Object Curvature: radius > 500 mm
Scan Length: 10 to 100 cm, selectable in 1cm steps
Resolution: 25 points/cm
Light Source: White Power LED
General:
Measuring time: < 4 sec.
Memory: 1000 readings
Interface: USB port
Languages: English French German Italian Japanese Portuguese Spanish
Power supply: rechargeable battery pack, approx. 1500 readings
Weight: 0.65 kg
Operating temperature: 10 - 40 °C
Storing temperature: 0 - 60 °C
Relative humidity: up to 85% at 35°C (95°F), non-condensing
Dimensions (L x W x H): 15 x 5.5 x 11 cm
