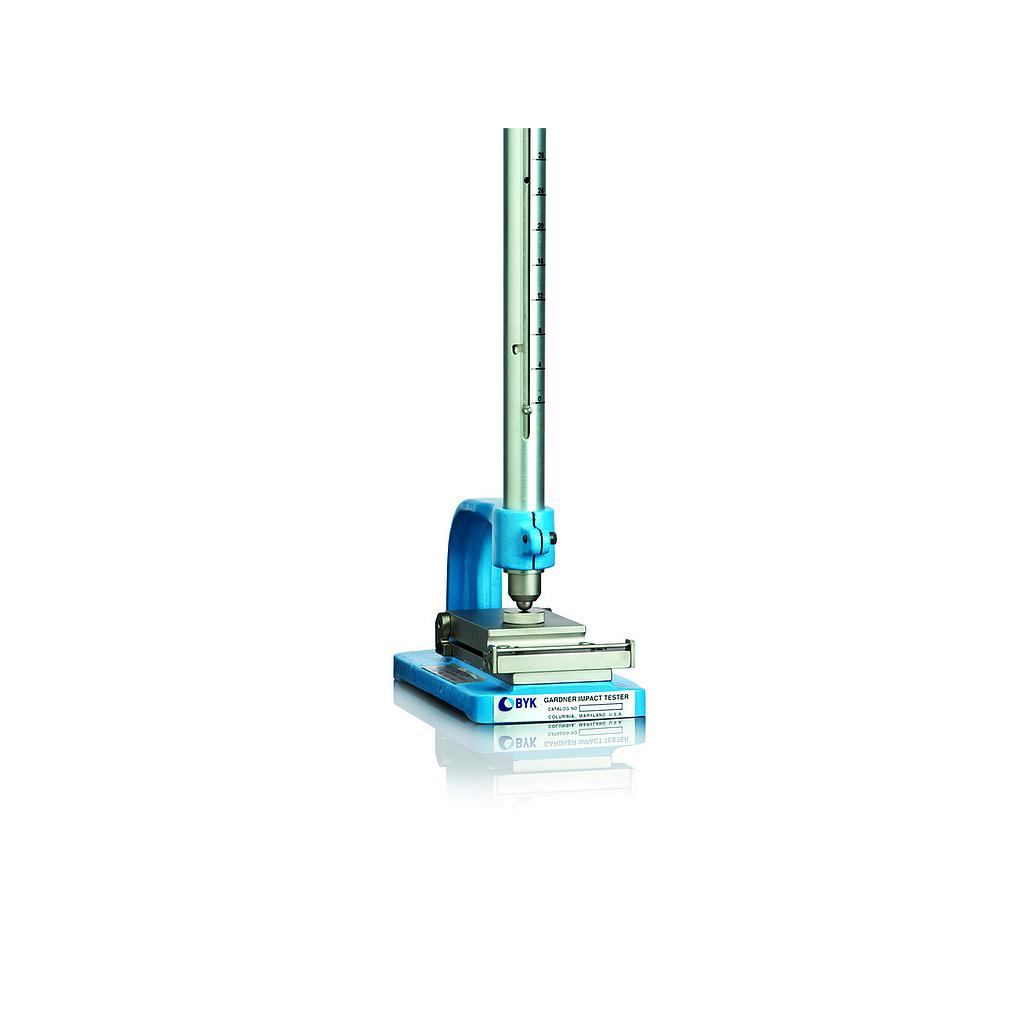

BYK Coverall Bend - Impact Tester Coverall Bend ແລະເຄື່ອງທົດສອບຜົນກະທົບ (Complies with ASTM D3281)

Technical Specifications

Weights included: 4 lb

Scale: English

General

Weight: 8.2 kg/ 18 lb

Dimensions: L x W x H: 25 x 25 x 127 cm/ 10 x 10 x 50 in

Delivery Content

Base with arm support

Guide tube with inch-scale (1568)

Falling weight 4 lbs (1571)

Punch

Manual

Procedure

Impact Test

For impact studies, the top block is leveled with the plug removed exposing a 1.43 cm (0.563 in) hole. The 1.27 cm (0.50 in) diameter, round-nosed end of the 4 lb weight may now be dropped from any height along the graduated scale on the guide tube from 0 to 160 inch-pounds.

Bend Test

To make a bend test, the coated panel 3” x 4” (0.048” thickness) is first bent 180° over the 1/8” rod. The bent panel is placed between the parts of the hinge. Then the impact tool, flat face down, is dropped from any desired height onto the upper part of the hinge. The cylindrical fold in the panel is squeezed into a conical shape.

Features

The Coverall Bend and Impact Tester is designed to test the flexibility and impact resistance of coatings.

Graduated guide tube up to 160 inch-pounds of force

Redesigned guide tube to easily hold the weight during sample change-over

Indenter built into the weight

Manual
