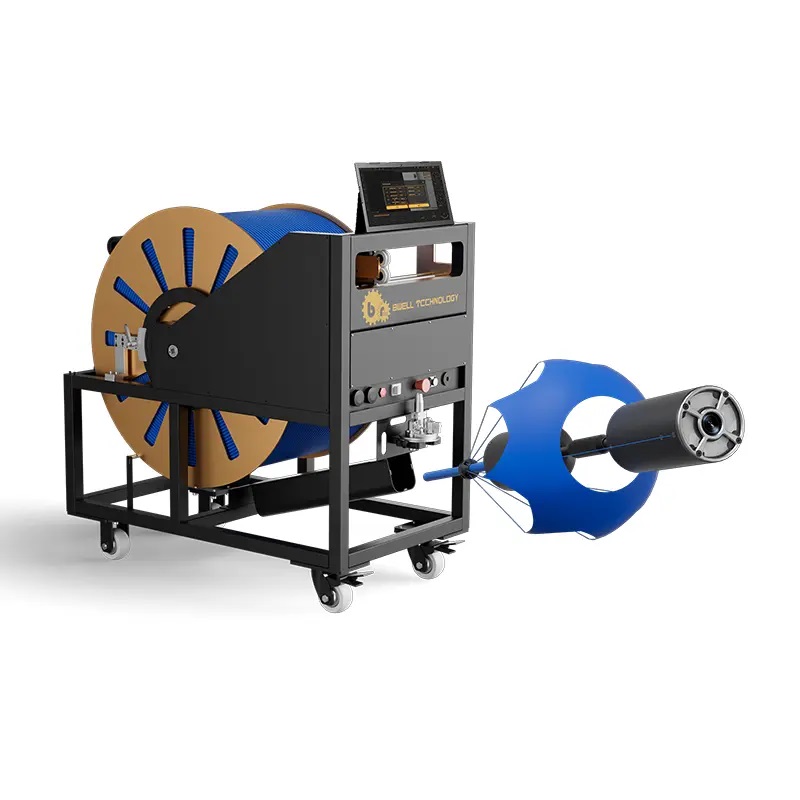

Name: Bwell Snake ການກວດສອບແລະການກວດຫາການລະເລີຍນ້ຳດ້ວຍຄວາມດັນນ້ຳ (DN200, DN500 and up)
Brand: Bwell

ຕິດຕາມຂ່າວສານ ແລະ ຂໍ້ສະເໜີ

ຮັບສ່ວນຫຼຸດພິເສດຕາມປະລິມານ, ອັບເດດລາຄາຂາຍສົ່ງ ແລະ ການແຈ້ງເຕືອນສິນຄ້າໃໝ່ສົ່ງກົງເຖິງອິນບັອກຂອງທ່ານ.

ໂດຍການສະໝັກສະມາຊິກ, ທ່ານຍອມຮັບ ເງື່ອນໄຂການໃຫ້ບໍລິການ ແລະ ນະໂຍບາຍຄວາມເປັນສ່ວນຕົວ ຂອງພວກເຮົາ.

ການຊ່ວຍເຫຼືໍາດ່ວນ

ເຂົ້າເຖິງຜູ້ຊ່ຽວຊານທີ່ໄດ້ຮັບການຢັ້ງຢືນຂອງພວກເຮົາໂດຍກົງ

Bwell Snake ການກວດສອບແລະການກວດຫາການລະເລີຍນ້ຳດ້ວຍຄວາມດັນນ້ຳ (DN200, DN500 and up)

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

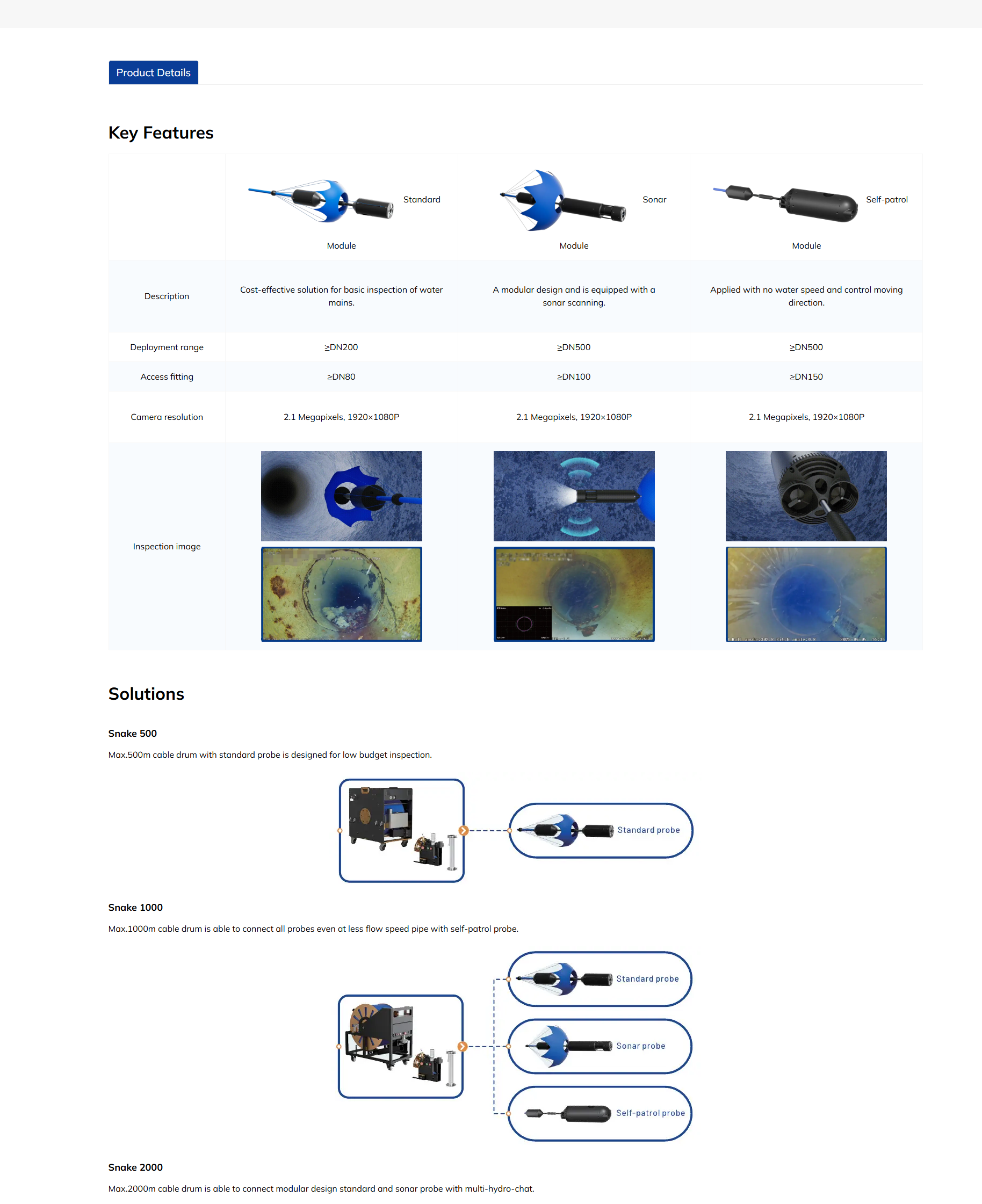

Probe		Standard	Sonar	Self-Patrol
	Deployment range	DN200 and up	DN500 and up	DN500 and up
	Dimensions	φ70×175mm+160mm+φ70×160	φ90×420mm+160mm+ φ70×160	φ130×395mm+160mm+φ70×160
	Weight	approx.1kg	approx.2.5kg	approx.4kg
	Leak detection	Acoustic sensor	Acoustic sensor	Acoustic sensor
	Leak location accuracy	±0.5m	±0.5m	±0.5m
	Probe	2×φ70×175mm	φ90×420mm	φ130×395mm
	Front camera resolution	2.1 Megapixels, 1920×1080P	2.1 Megapixels, 1920×1080P	2.1 Megapixels, 1920×1080P
	Frontcamera lighting	12×3W, LED	12×3W, LED	6×3W, LED with convex mirror
	Required water speed	0.2-2m/s	0.2-2m/s	0-2 m/s (applied with no water speed)
	Required water pressure	1-17 bar	1-17 bar	1-17 bar
	Integrate sonde	±0.5m accuracy; Max.4m depth	±0.5m accuracy; Max.6m depth	±0.5m accuracy; Max.10m depth
	Protection class	IP68	IP68	IP68
	Frequency	X	2MHz	X
	Frequency	X	667kHz	X
	Scanning angle	X	7.5x2.6°	X
	Scanning angle	X	2.5x0.9°	X
	Sonar scanning distance	X	0.05-12m	X
	Cable drum	Max.2000m	Max.2000m	Max.1000m
Applying condition	Access fitting	≥DN80	≥DN100	≥DN150
	Weight	approx.12kg	approx.16kg	approx.30kg
	Patent launch system	ɸ220xH450mm; 8kg
	Pipe material	All pipe
	Bend pipe	Travel single bend ≤45°; travel multibends≤270°
Cable drum		500m	1000m	2000m
	Dimensions	695×580×760mm	1085×630×1100mm	1085×630×1100mm
	Weight	90kg	245kg	245kg
	Motor-driven	√	√	√
	Meter counter	√	√	√
	Power supply	Battery, 8h	Battery, 8h	Battery, 8h
	Protection class	IP65	IP65	IP65
	Cable level wind assembly	√	√	√
	Emergency stop switch	√	√	√
Control unit	Dimensions	12.6 inch
	Weight	approx.609g (excl. pad case)
	Operating system	Android
	Display resolution	2560×1600P
	Battery	8h
	Data storage	256G
	Connections	Type-c
	Data transmission	Wi-Fi connection
