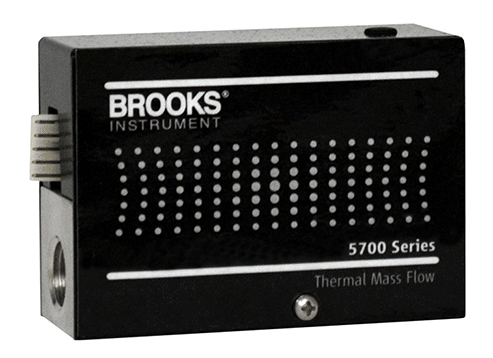

Brooks Instrument 5700 ຕວງຄວບຄຸມແລະເຄື່ອງວັດອັດຕາໄຫຼນ້ຳໜັກ (0~50l/min, 5%)
Standard Flow Ranges*:
0-10, 0-20, 0-50, 0-100, 0-200, 0-500 ml/min
0-1, 0-2, 0-5, 0-10, 0-20, 0-50 liters/min
Rangeability: 20:1
Repeatability: 0.5% full scale
Accuracy: 5% full scale including linearity
Temperature Sensitivity:
Zero: less than ±0.075% full scale per degree C
Span: less than ±0.075% full scale per degree C
Pressure Sensitivity: Less than 0.05% per psi (0.0073% per KPa)
Mounting Attitude Sensitivity: Less than 0.5% full scale shift after rezeroing
Working Pressure: Up to 150 psig (1034 KPa)
Temperature Limits:
Operating: 5 to 65°C
Non-operating: -25 to 100°C
Materials of Construction: 304 and 316 Stainless Steel
Connections:
Mechanical: 1/4” FNPT
Electrical: 5-Pin post header horizontal mount AMP 171826-5. The mating connector is AMP 172053-5
Power: 11.5 to 15.5 Vdc, 50 mA
Output Signal: 0-5 Vdc into 1000 ohms or greater
Dimensions: See Dimensions figure
Weight: 1lb/0.5Kg
