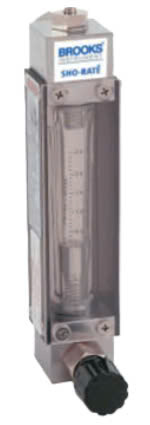

Brooks Instrument 1358F ເຄື່ອງມວນອັດຕາໄຫວນ້ຳພື້ນທີ່ປ່ຽນໄດ້ປະເພດຫຼັກແກ້ວ (±10% of F.S.)
Performance
Measuring range: see datasheet
Standard Accuracy: ±10% of F.S.
Repeatability: 0.5% F.S.
Rangeability: 10 - 1
Pressure/Temperature
200 psig at 33°F to 250°F (1°C to 121°C)
Fluid temperatures below 32°F (0°C) will cause frosting of the glass metering tube.
100 psig at 33°F to 250°F (1°C to 121°C)(CRN Certification)
Materials of Construction
Metering Tube: Borosilicate Glass
Tube Packing: Standard: NeopreneTM (Brass meters); Viton-A® fluoroelastomers (316 Stainless Steel meters); Optional: EPM
O-rings: Standard: Buna-N (Brass meters); Viton-A® fluoroelastomers (316 Stainless Steel meters); Optional: EPM
Float: 316 Stainless Steel
Float Stops: Stainless Steel
Side Plates Standard: Black Anodized Aluminum
Window: Scratch resistant, UV stabilized polycarbonate
Back Cover: Milk white polycarbonate
Scales
Type (standard): Fused on meter tube
Length: 75mm, nominal
Graduations: Standard: Direct read on tube in gpm water or scfm air
Optional: Special direct read decal on tube.
Direct read on metal scale plate mounted beside tube
For more details, see datasheet to select suitable configuration and measuring range.
