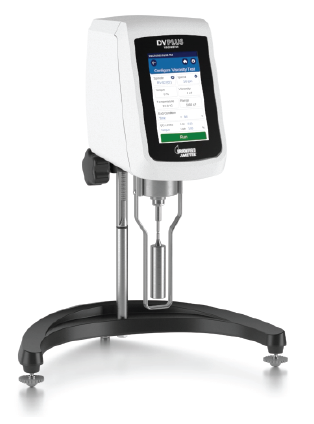

BROOKFIELD RVDVPL Viscometer (100 – 40,000,000 cP)

5-inch color touch screen with dynamic user interface for direct access to features.

Advanced interface with advanced controls and real-time test indicators.

Information displayed includes:

Viscosity ( cP, mPa*s, P, Pa*s)

- temperature (oC, oF or K)

- Torque (% mNm, Dyne*cm)

- Speed / Impeller.

- Display with test data.

Multiple language selection, including English, French, German, Portuguese, Chinese, Japanese and Spanish.

Direct access to timing function (time to torque, time to temperature, dwell time)

Automatic range calculation:

Full scale range (FSR) at 100%

- Maximum viscosity measured with impeller/speed combination

Viscosity scale: 100 – 40,000,000 cP

Speed: 0.1-200 rpm

Range accuracy: ±1.0%

Repeatability: ±0.2%

Capable of temperature compensation up to ±5oC.

740 total speeds for excellent viscometer range capabilities

Optional RTD temperature probe (DVP-94Y)

Supply includes: Main machine, RV spindle set of 06 pieces, guard leg to protect the stirrer, base, machine suitcase.
