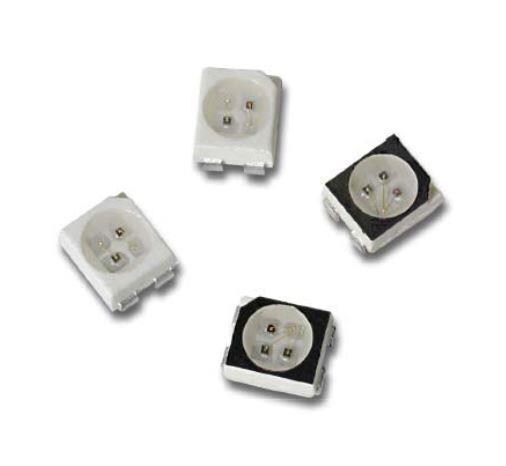

Broadcom HSMF-A222-A00J1 ໄຟ LED ຫຼາກສີ ແດງ/ເຫຼືອງສອງສີ

Width: 2.8 mm

Height: 1.9 mm

Length: 3.2 mm

Lens Color: Colorless

Lens Shape: Round Flat

Unit Weight: 324.450 mg

Power Rating: 72 mW

Viewing Angle: 120 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.2 mm

Lens Transparency: Clear

Illumination Color: Red, Amber

Luminous Intensity: 80 mcd, 80 mcd

Moisture Sensitive: Yes

If - Forward Current: 20 mA

Vf - Forward Voltage: 1.9 V, 1.9 V

Vr - Reverse Voltage: 5 V

Wavelength/Color Temperature: 626 nm, 590 nm

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C
