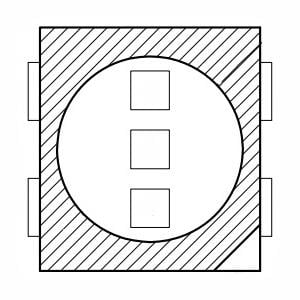

Broadcom ASMB-LTC2-0A335 ໄຟ LED ຫຼາຍສີ 2121 PLCC4 ສີສາມສີ

Width: 2.1 mm

Height: 1 mm

Length: 2.1 mm

Lens Color: Colorless

Lens Shape: Square

Unit Weight: 1.169 g

Power Rating: 62.5 mW, 51 mW, 51 mW

Viewing Angle: 105 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.1 mm x 2.1 mm

Lens Transparency: Diffused

Illumination Color: RGB

Luminous Intensity: 70 mcd, 300 mcd, 50 mcd

Moisture Sensitive: Yes

If - Forward Current: 5 mA

Vf - Forward Voltage: 2 V, 2.7 V, 2.7 V

Wavelength/Color Temperature: 621 nm, 525 nm, 468 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
