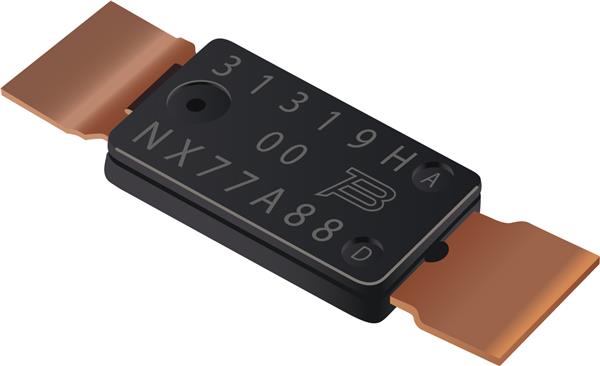

Bourns NX77A1B ອຸປະກອນຕັດການຄວາມຮ້ອນ TCO, ກະສົດສູງ, ຂາທາງແກນ, 77C, ການຢືນຢັນຕົວເອງ, ການສະແດງ

Width: 2.8 mm

Height: 0.94 mm

Length: 4.8 mm

Resistance: 1.2 mOhms

Maximum Voltage: 28 VDC / 35 A, 100 cycles

Rated Temperature: + 77 C

Reset Temperature: + 40 C

Maximum Leakage Current: 200 mA

Minimum Holding Voltage: 3 V

Maximum Breaking Current: 5 VDC / 70 A, 100 cycles

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 30 C
