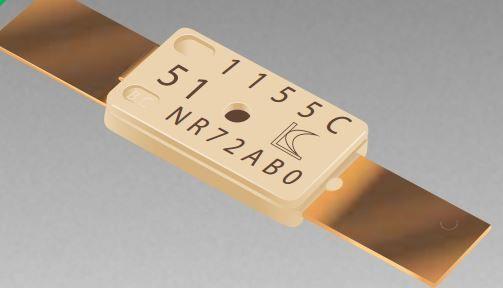

Bourns NR72CB0 ອຸປະກອນຕັດການຮ້ອນ ອຸນຫະພູມການຕັດ 72c 5c TOL

Width: 2.8 mm

Height: 0.89 mm

Length: 4.8 mm

Approvals: UL, cUL, TUV

Tolerance: +/- 5 C

Resistance: 15 mOhms

Unit Weight: 100 g

Contact Rating: 12 VDC / 12 A, 6000 cycles

Maximum Voltage: 28 VDC / 12 A, 100 cycles

Rated Temperature: + 72 C

Reset Temperature: > 40 C

Maximum Temperature: + 72 C

Maximum Leakage Current: 150 mA

Minimum Holding Voltage: 2 V

Maximum Breaking Current: 5 VDC / 30 A, 100 cycles
