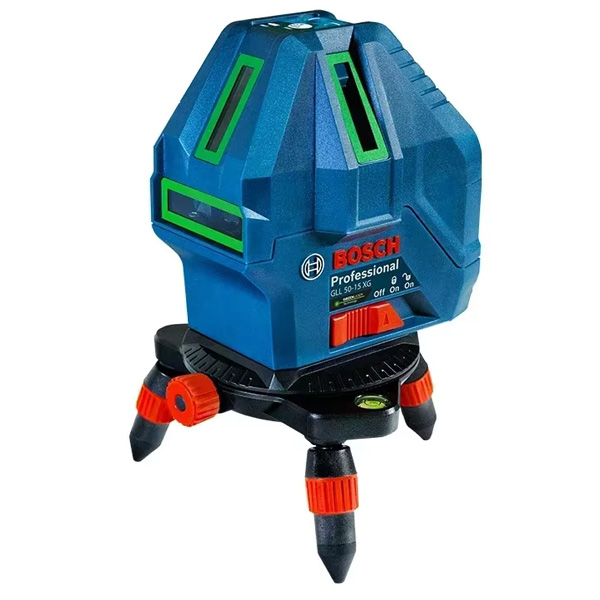

BOSCH GLL 50-15 XG ລະດັບເສັ້ນແສງເລຊເີ 5 ເສັ້ນ (< 10mW, 500 – 540 nm)

Laser type < 10mW, 500 – 540 nm

Storage temperature -20 – +70 °C

Operating temperature -10 – +45 °C

Laser class 2

Operating range:

With laser 15 m

With laser in acquisition mode 10 m

With receiver 50 m

Reference point 5 m

Level accuracy

Horizontal beam ± 0.2mm

Vertical beam ± 0.3mm

Reference point 0.7mm

Automatic leveling range ± 2.5°

Level time < 4s

Maximum application height over reference height 2000m

Protection class IP 54

Tripod mount thread 5/8″

Weight, approx. 0.54 kg

Power supply 4 x 1.5 V LR6 (AA)

Dimensions without swivel base 122x83x129 mm
