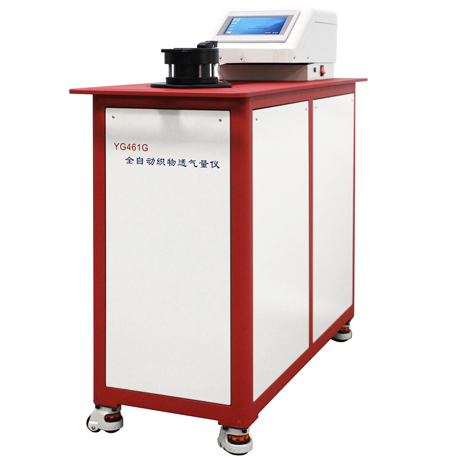

Bonnin YG461G ເຄື່ອງທົດສອບຄວາມທົນທານຕໍ່ອາກາດຂອງຜ້າອັດຕະໂນມັດ (0.1 ~ 12000mm / s)

Operation display: Touch screen

Nozzle change method: Automatically

Nozzle pressure difference: 4,000Pa

Specimen pressure difference: 1,000Pa

Permeability range: 0.1~12000mm/s

Measuring error: ≤±2%

Measuring unit: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min

Testing area: 5cm2, 20cm2, 50cm2, 100cm2 , 50mm (≈19.6cm2), 70mm(≈38.3cm2)

Fabric thickness: ≤12mm

Nozzle parameter:

- Number: 0 1 2 3 4 5 6 7 8 9 10

-Dia. mm: 0.8 1.2 2 3 4 6 8 10 12 16 20

Power supply: AC 220V 50/60HZ, 2KW

Dimensions: 1000 x 410 x 980mm (L x W x H)

Weight: 90kg
