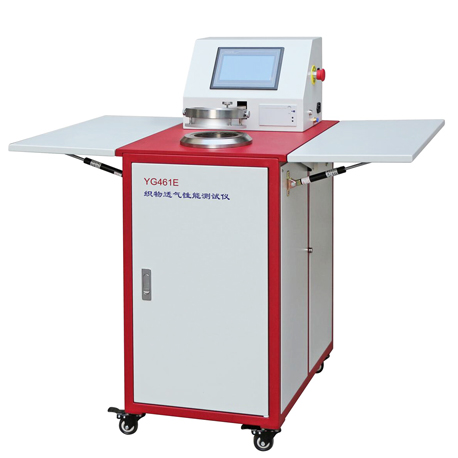

Bonnin YG461E ເຄື່ອງທົດສອບຄວາມທົນທານຕໍ່ອາກາດຂອງຜ້າ (0.1～12000mm/s)

Operation display: Touch screen

Nozzle change method: Manual

Nozzle pressure difference: 4,000Pa

Specimen pressure difference: 1,000Pa

Permeability range: 0.1～12000mm/s

Measuring error: ≤±2％

Measuring unit: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min

Testing area: 5cm2, 20cm2, 50cm2, 100cm2 , Ф50mm (≈19.6cm2), Ф70mm（≈38.3cm2）

Fabric thickness: ≤12mm

Nozzle parameter:

- Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10

- Dia. mm: 0.8, 1.2, 2, 3, 4, 6, 8, 10, 12, 16, 20

Power supply: AC 220V 50/60HZ, 2KW

Dimensions: 700 x 520 x 1100mm (L x W x H)

Weight: 93kg
