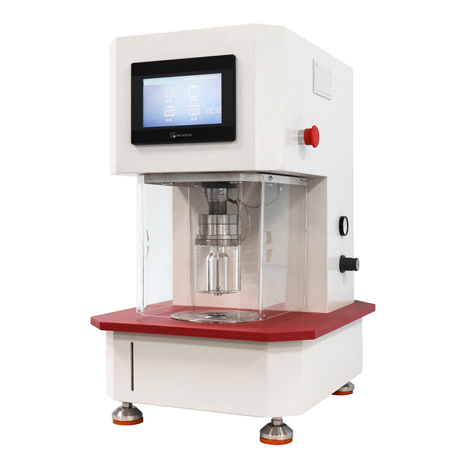

Bonnin YG032E-10 ເຄື່ອງທົດສອບຄວາມເຂັ້ມແຂງຂອງຜ້າແພ Mullen Bursting (10.000Mpa)

Testing range(1%~100%):

- Range: 10.000Mpa

- The min. Division value: 0.003Mpa

Test area: 7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm); 50cm2 (Φ79.8mm)100 cm( Φ3112.8mm) can be option

Thickness of elastic membrane: ≤2mm

Pressure speed: 20ml/min – 600ml/min

Maximun expansion rate: 75±0.02mm

Testing units: Kpa, kgf/ cm2, atm, mmHg, lb/in2 free transition

Test method: Constant busting, pressure and expansion rate

Output: Printer ,display output, and can be connected to the computer

Dimension: 500×450×700mm

Power supply: AC20V 50Hz 200W

Weight: 200Kg

Standard accessories:

- 1 set: Test set of 7.3cm²(φ30.5mm)

- 1 set: Test set of 50cm²(φ79.8mm)

- 1pc: Wrench

- 1pc: Stainless steel calibration plate

- 1pc: Rubber diaphragm

- 1pc: English operation software

- 1pc: Cable connect with PC

Optional accessories:

- Other test set

- Rubber diaphragm

- Air compressor
