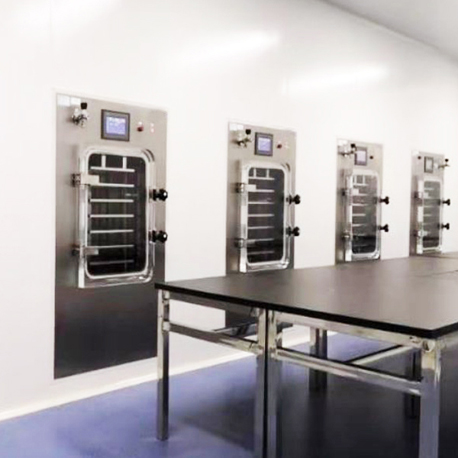

Bonnin LGJ-100FY Silicone Oil Heating Lyophilizer Freeze Dryer (11L; 7500W)
Freeze-drying area: 1.15m2
Material plate size: 475 × 595mm
Number of material trays: 4
Shelf size: 480 × 600mm
Number of shelves: 4+1 floors
Shelf spacing: 70mm
Shelf temperature range: -55 ° C ~ +70 ° C
Shelf temperature difference: ±1 °C (balanced)
Cold trap temperature: ≤ -75 ° C (no load)
Water catching capacity: ≥15KG/24h
Pumping rate: 15L/S
Ultimate vacuum: ≤5pa (no load)
Installed power: 7500w
Host weight: 1000kg
Mainframe dimensions: 1640×1100×1630mm+350mm cylinder
Cooling method: air cooling
Plate loading material: 11L (material thickness 10mm)
Vial bottle Ф 12mm: 8624
Vial bottle Ф 16mm: 4788
Vial bottle Ф 22mm: 2460
Configuration list:
· Freeze dryer host machine ×1
· Vacuum pump × 1
· Sample tray × 4
· Hex wrench × 1
· Silicone oil × 1
· Circuit diagram × 1
· Instruction manual ×1
· Product warranty card × 1
· Product certificate × 1
· Other accessories
Optional accessories:
· Eutectic point tester
· Freeze end point judgment function
· Imported brand vacuum pump
· Vacuum pump anti-return device
· Oil mist filtration system
· Mobile APP monitoring system
· LYO-MEGA software system
· Data recorder
· Backfill filter
· Automatic backfill and drainage control system
· Capacitive vacuum gauge
