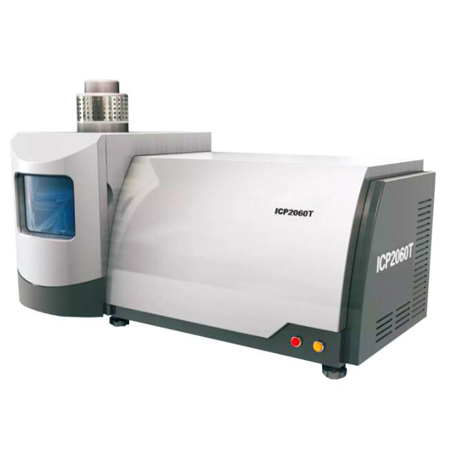

Bonnin ICP 2060T Inductively Coupled plasma Emission Spectrometer (195-500 nm)

Technical Specifications:

- Resolution: 0.015nm (3600 line grating); 0.030nm (2400 line grating)

- Spray chamber: Scott double pass spray chamber

- Focal length: 1000mm

- Output power: 800W -1600W, adjustable with power efficiency more than 65%

- Grating specifications: holographic grating with 3600E/mil or 2400 L/mil, 80 mmx100mm of ruling area

- Output power stability: 00.05%

- Wavelength range: 195-500 nm for 3600 line grating, 195-800 nm for 2400 line grating

- > Induction coil: 25mmx3 ID(ID-internal diameter), equipped with three concentric quartz torch tubes 35mm ED (ED-external diameter)

Control Circuit:

- Photomultiplier tube

- Specification:R212/R928

- Negative high voltage: -50 – -1000 V

- Circuit measuring range: (101′ – 101A

- Signal acquisition: VF conversion

Other Specifications:

- Repeatability:

+ Short-term stability- RSD 1.5%

+ Long-term stability:RSD 2%

- Test speed:5-8 elements/min

- Limits of detection (LOD, pg/L) for most elements: 1ppb-10ppb
