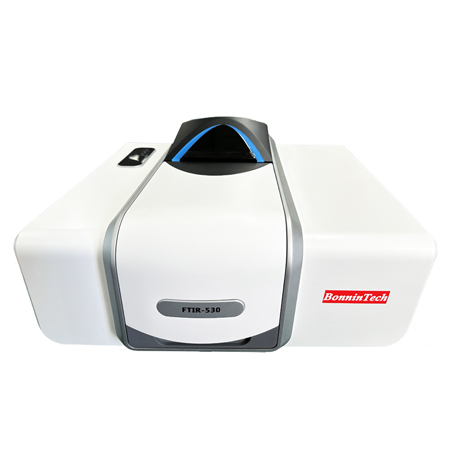

Bonnin FTIR-530 FTIR Spectrophotometer (7800cm^-1~350cm^-1)

Interferometer: Cube-corner Michelson interferometer

Beam splitter: Multilayer Ge coated KBr

Detector:

- Room temperature DLATGS module (standard)

- Temperature stabilized, high sensitivity DLATGS module (optional)

IR Source: High intensity, long lifetime, air-cooled IR source

Wavenumber Range: 7800cm^-1~350cm^-1

Resolution: 0.85 cm^-1

Signal to noise ratio: Better than 20,000:1 (RMS value, at 2100cm^-1 ~ 2000cm^-1 or 2100cm^-1 ~ 2200cm^-1, resolution: 4cm^-1, detector: DLATGS, 1 minute data collection)

Wavenumber Accuracy: ±0.01 cm^-1

Scanning Speed: Microprocessor control, different scanning speed selectable.

Software:

- Main FTOS Suite software workstation, compatible to all version Windows OS

- Various specialized functional software modules (optional)

Communication:

- Ethernet interface (standard)

- WIFI wireless communication (optional)

Data Output: Standard data format, report generation and output

Status Diagnosis: Power on self check, real-time temperature and humidity monitoring and reminders

Certification: FDA 21 CFR Part11 compliance，IQ/OQ/PQ（Optional）

Environment Conditions:

- Temperature: 10℃～30℃，

- humidity: less than 70%

Power Supply: AC220V±22V 50Hz±1Hz; AC110V（optional）

Dimensions & Weight: 520 x 435 x 255mm, 24kg

Accessories:

- Transmission sample holder (Standard)

- Optional accessories such as gas cell, liquid cell, Defused/Specular Reflection, single/multi reflection ATR, etc.
