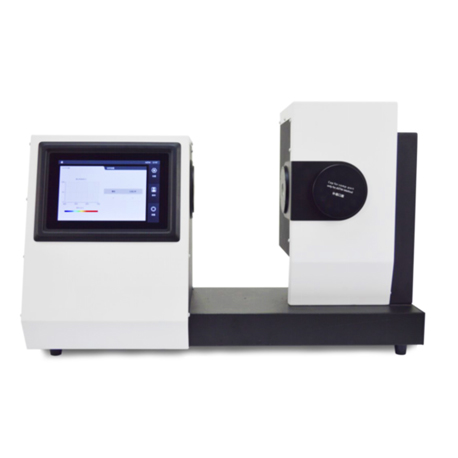

Bonnin CS-700 ດິຈິຕອລ Color Haze (Gloss) Meter (400-700nm)

Light source:

- Haze/Transmittance: CIE-A, CIE-C, CIE-D65

- Chromaticity index: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84

Test standard:

- ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08, CIE ****5, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standard

- Haze (HAZE), transmittance (T), spectral transmittance,

Measurement parameters:

- CIE Lab,LCh,CIE Luv,XYZ,Yxy, , Hunter Lab MunsellMI,CMYK,

- Whiteness WI (ASTM E313-00, ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby),

- Yellowness YI (ASTM D1925, ASTM E313-00, ASTM E313-73),

- Tint (ASTM E313-00), Metamerism Index Milm,

- APHA, Pt-Co (platinum cobalt index), Gardner (Gardner index), color difference (ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1) ,ΔE*94,ΔE*00)

Spectral response: CIE spectral function Y/V(λ)

Wavelength range: 400-700nm

Wavelength interval: 10nm

Optical path structure: 0/d

Illumination and Sample Aperture Size: 16.5mm/21mm

Range: 0-100%

Resolution: 0.01 unit

Repeatability: Haze < 10%, repeatability ≤ 0.05%; haze ≥ 10%, repeatability ≤ 0.1%; transmittance ≤ 0.1%

Sample size: Thickness≤145mm

Display: 7 inch capacitive touch screen

Storing data: 20000 values

interface: USB interface

power supply: 220V (with power cord)

Operating temperature: 0~45°C, relative humidity 80% or lower (at 35°C), no moisture condensation

Stored temperature: -25°C~55°C, relative humidity 80% or lower (at 35°C), no moisture condensation

Volume (length X width X height): 598mmX247mmX366mm

Standard: PC management software (Haze QC)

Optional: Measuring fixture, haze standard sheet, 5mm/7mm/10mm diameter plate, 40*10 cuvette
