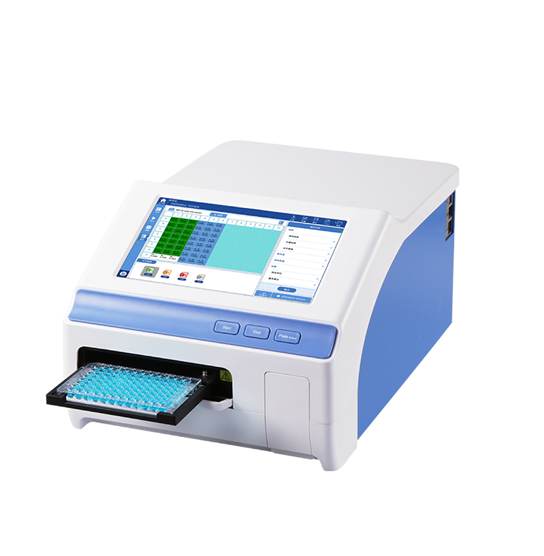

Bonnin Bio-Reader200 Monochromator

Display: 10 inch touch screen

Light source: Xenon lamp

Wavelength range: 200 – 1000 nm with 1 nm steps

Wavelength accuracy: 2 nm

Tepetition: 0.2 nm

Wavelength selection: Monochromator

Read-out range: 0 – 4.0 OD

Half-bandwidth of filters: ＜2.5 nm

Detector: Two silicon photoelectric detector, one for measurement, another for reference

Linearity @450 nm: R²≥0.999,[0.0-3.0Abs]

Accuracy @450 nm: ±(1.0 %+0.003Abs),(0~2.0 Abs]; ±2.0 %,(2.0~2.5Abs]

Precision @450 nm: CV <0.5 % or SD<0.003 accurate model; CV <1.0 % fast mode

Test speed: 8 seconds with 96-well plate (fast mode); 28 seconds with 96-well plate (accurate model)

Plate shaking: Linear; three options for speed

Incubator: RT + 4 ℃~45 ℃

User interface: Integrated software or PC control software

Analysis software: ReaderIt-II

User interface: Touch screen, android system, 10 inch touch screen, external keyboard & mouse

Storage: 16G, more than 20,000 test records

Port: 2 USB A type ports, 1 USB B type port, 1 Ethernet port

Automated system: Temporarily incompatible with automated systems

Power supply: DC24 V, 6.67 A

Dimension (W×D×H) mm: 300×500×260 mm

Weight: 15.5 kg
