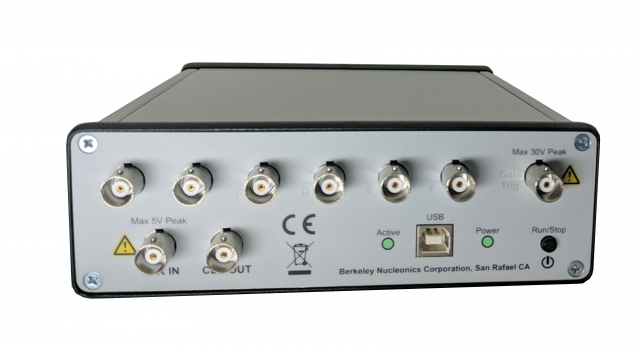

BNC 525 ເຄື່ອງກຳເນີດກະແສໄຟຟ້າ / ເຄື່ອງກຳເນີດກະແສໄຟຟ້າດິຈິຕອລຊັກຊ້າ (6CH; 20 MHz; Jitter < 50 ps)
Internal Rate Generator:
Rate (T0 Period): 0.001 Hz to 20 MHz (1000 s to 50 ns)
Resolution & Accuracy: 4 ns
Jitter: < 50 ps RMS
Burst / Duty Cycle Mode: 1 to 1,000,000 pulses
Timebase: 200 MHz / 250 MHz low jitter PLL
Oscillator: 50 MHz, 50 ppm crystal oscillator, optional 1 ppm clock
Pulse Control Modes: Internal rate generator, external trigger / gate
System Output Modes: Single, continuous, burst, duty cycle, cycle counts
Pulse & Period Counter: 32 Bit
Synchronized Update Mode: Updates widths and delays on command
Pulse Delay Generation:
Width / Delay Resolution: 4 ns
Width Range: 10 ns – 1000 s
Width Accuracy: 10 ns + 0.0001 × (width + delay)
Delay Range: ±1000 s
Delay Accuracy: 4 ns / 5 ns + (0.0001 × delay)
Multiplexer: Any/all channels may be OR’d to any/all outputs, virtual channels for mixing
Channel Output Modes: Single shot, normal, burst, duty cycle
Channel Control Modes: Internally triggered or externally gated, each channel independently configurable
Jitter (Channel to Channel): < 250 ps RMS
External Gate / Trigger Input:
Threshold: 0.2 to 15 VDC
Max Input Voltage: 30 V peak
Gate Polarity: Active high / active low
Gate Control Modes: Pulse inhibit / output inhibit
Trigger Edge: Rising or falling
Trigger Rate: DC to 20 MHz
Trigger Input Jitter: < 5 ns RMS
Trigger Minimum Pulse Width: 20 ns
Trigger Insertion Delay: < 100 ns
Pulse Inhibit Delay: < 150 ns
Output Inhibit Delay: < 100 ns
Trigger Input Function: Generates single, burst or duty cycle pulses per external trigger
Outputs:
Output Impedance: 50 ohm
Output Level: 3.3 – 5 VDC (≥ 1 kΩ), 1.7 – 2.5 VDC (50 ohm)
Resolution: 20 mV
Current: 5 mA (1 kΩ), 50 mA (50 ohm)
Rise Time: < 2 ns @ 5 V (high impedance), < 1 ns @ 2.5 V (50 ohm)
Overshoot: < 100 mV + 10% of amplitude
General:
USB: USB 2.0
Baud Rate: Up to 115200 bits/sec
Voltage: +5 VDC ± 250 mV
Current: < 470 mA
Dimensions: 7.125 × 5.1 × 1.5 in (18.1 × 13 × 3.8 cm)
Weight: 1 lb
