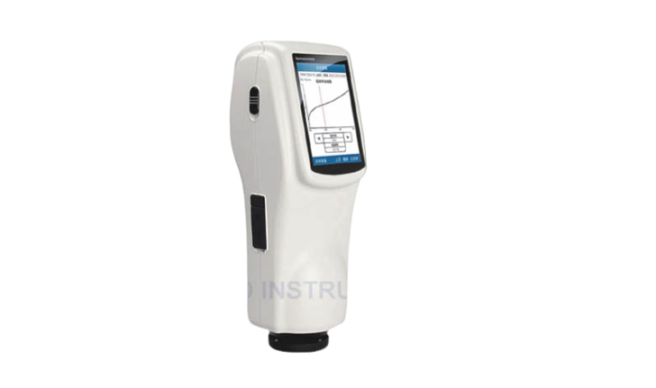

Biuged BGD 557 ເຄື່ອງວັດແທກແສງຕາເວັນ (400 ~ 700nm, Ф58 mm)
Illuminating/Observation System: 45°/0° (45 ring-shaped illumination, vertical viewing)
Integrating sphere Size: Ф58 mm
Light Source: Combined LED sources
Spectroscopic Mode: ---
Sensor: Silicon photodiode array
Wavelength range: 400~700nm
Wavelength interval: 10nm
Reflectance range: 0~200%
Illuminating/Measuring Aperture: Single Aperture: MAV（Big Aperture）：Φ8mm/Φ10mm
Measurement Mode: SCE
Color Space: CIE LAB XYZ; Yxy; LCh; CIE LUV
Color difference Formula: AE*ab, ΔΕ*υν, ΔΕ 94, ΔΕ cmc (2:1),ДЕ*cmc (1:1),
ΔE*00
Other Chromaticity Data: WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness
Observer: 2°/10°
Illuminant: D65, A,C,D50, D55, D75, F1, F2 (CWF),F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5) F11 (TL84),F12 (TL83/U30)
Display Contents: Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset , Color Simulation
Display Data: Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color indexsetting (AE*94, ΔΕ*cmc, ΔΕ2000) tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement Time: 1.5s
Repeatability: Spectral Reflectance: standard deviation within 0.1% (400~700nm: within 0.2%)
Colorimetric Value: Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement: MAV/SCI，within ΔE*ab 0.2（Average value of 12 pcs BCRA II series color tiles）
Measurement Mode: Single Measurement，Average Measurement（2~99 times）
Locating Mode: ---
Dimension/Net Weight: 90×77×230 (L×W×H) /600g
Battery: Li-ion battery: 5000 times within 8 hours
Lamp Life: 5 years, more than 1.6 million measurements
Display Screen: TFT 3.5inch, Capacitive Touch Screen
Interface: USB/RS-232
Data Memory: 1.000 Standards, 15.000 Samples
Operating Tem. Range: 0~40℃，0~85%RH（No condensation），Elevation: Below 2000 m
Storing Tem. Range: -20~50℃，0~85%RH（No condensation）
Standard Accessory: Power Adapter, Li-ion Battery, ，Data line，Operating Instruction，CD-ROM（containing management software）、White and black calibration cavity，Protective cover
