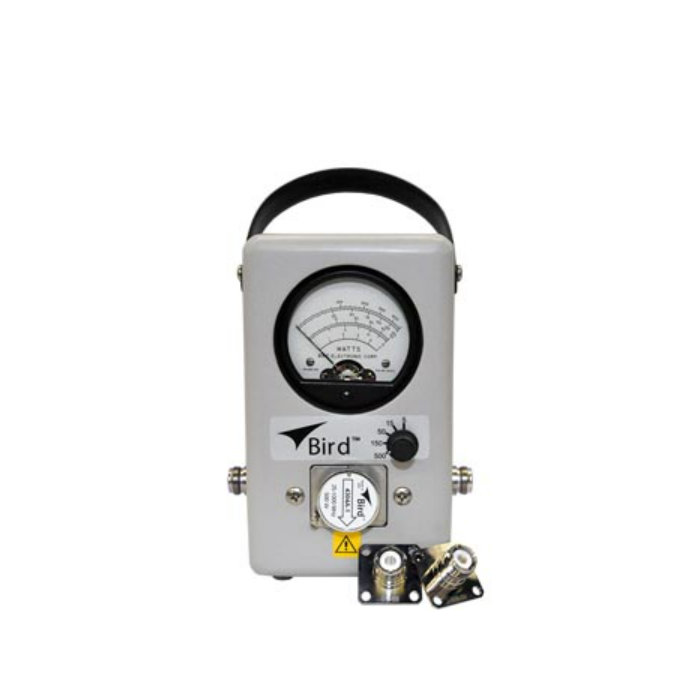

Bird 4304A RF ວັດວັດ (5, 15, 50, 150, 500 W)
Power Range: 5, 15, 50, 150, 500 W
Frequency Range: 25MHz to 1.0 GHz
Insertion VSWR: 25 to 521 MHz, 1.05 max. (with UHF female conn.)
512 to 1000 MHz, 1.07 max.
Accuracy:
25 to 100 MHz, ± 7% of full scale
100 to 512 MHz, ± 6 of full scale
512 to 1000 MHz, ± 7% of full scale
Insertion Loss:
25 to 512 MHz, 0.10 dB max. (with UHF female conn.)
512 to 1000 MHz range, 0.13 dB max.
Connectors:
Two Type-N (female) QC
Two UHF (female) QC
Finish: Light Gray Powder Coat
Dimensions(H x W x D):
6-7/8 in x 5-1/8 in x 3-5/8 in, including connectors
175 mm x 130 mm x 92 mm
Weight: 3 lbs. (1.4 kg)
