Features:
- 4 Pipetting probe, 1ul stepping (1000ul volumes).
- Total 25 racks, arbitrary rack can be defined as sample or reagent on the software.
- 4 units 96 well microplates (pipetting,incubator,reading)
Sample Pipetting Unit
Sample Rack: 24 sample tubes/rack, at most 23 racks
Primary Sample Tubes: 11.5-13mm
Pipetting: 8ul~1000ul, (10ul) CV<5%
Time To Dispense: 8 minutes adding 96 samples
Dispensing System: 1 aspirating-dispensing probe with X-Y-Z movement;dilution system with a syringe of 1000ul, continuous flow washing station.
Reagent Pipetting Unit
Reagent Racks: 2 reagent tanks(60ml)/ rack, at most 23 racks
QC Racks: 24 positions/QC rack, at most 23 racks
Pipetting: 8ul~1000ul,1ul stepping
Pipetting Precision: (100ul )CV≤0.5%
Time To Dispense: 2 minutes(typical)^100ul of 96 reagents to plate from reagent bottle
Programmable: Yes(options & parameters)
Wash Containers: 3 wash buffers at 2.0L, 1 wash buffers at 5.0L,with level-sensing
Waste Containers: 25L with waste full sensor
Washing System: two 8 nozzle manifolds, one to dispense and the other one to aspirate
Washing Residual: <2μl
Reading System: 8 independent photometric channels with mono and bichromatic reading capability
Photometric Range: 0.000 ~3.000 OD
Spectral Range: 400-700nm
Optical Filters: 2 precision filters (450and 630nm); 2 more on request (4 filters max, 405 nm, 450 nm, 492 nm and 630 nm)
Reading Inaccuracy: inaccuracy±1% from 0.000 to 1.500 OD, ±2% from 1.500 to 3.000 OD
Incubators: 4 independent units
Programmable: Yes
Temperature Range: RT to 45 °C
Temperature Accuracy: ±0.5℃
Temperature Staility: ±0.5℃
Software System: Windows 7 /8/10 or above, LIS system available
Function Application: Work list set up, patient reports and result filing; calibration curve ,storage for each carried out test
Data Reduction: Cut-off (qualitative)
Power Supply: AC220V+ 10%,50/60Hz，450W
Instrument Dimension (L*W*H): 1235*710*880mm
Package Dimension (L*W*H): 1370*850*1439mm
Total Weight: 220kg

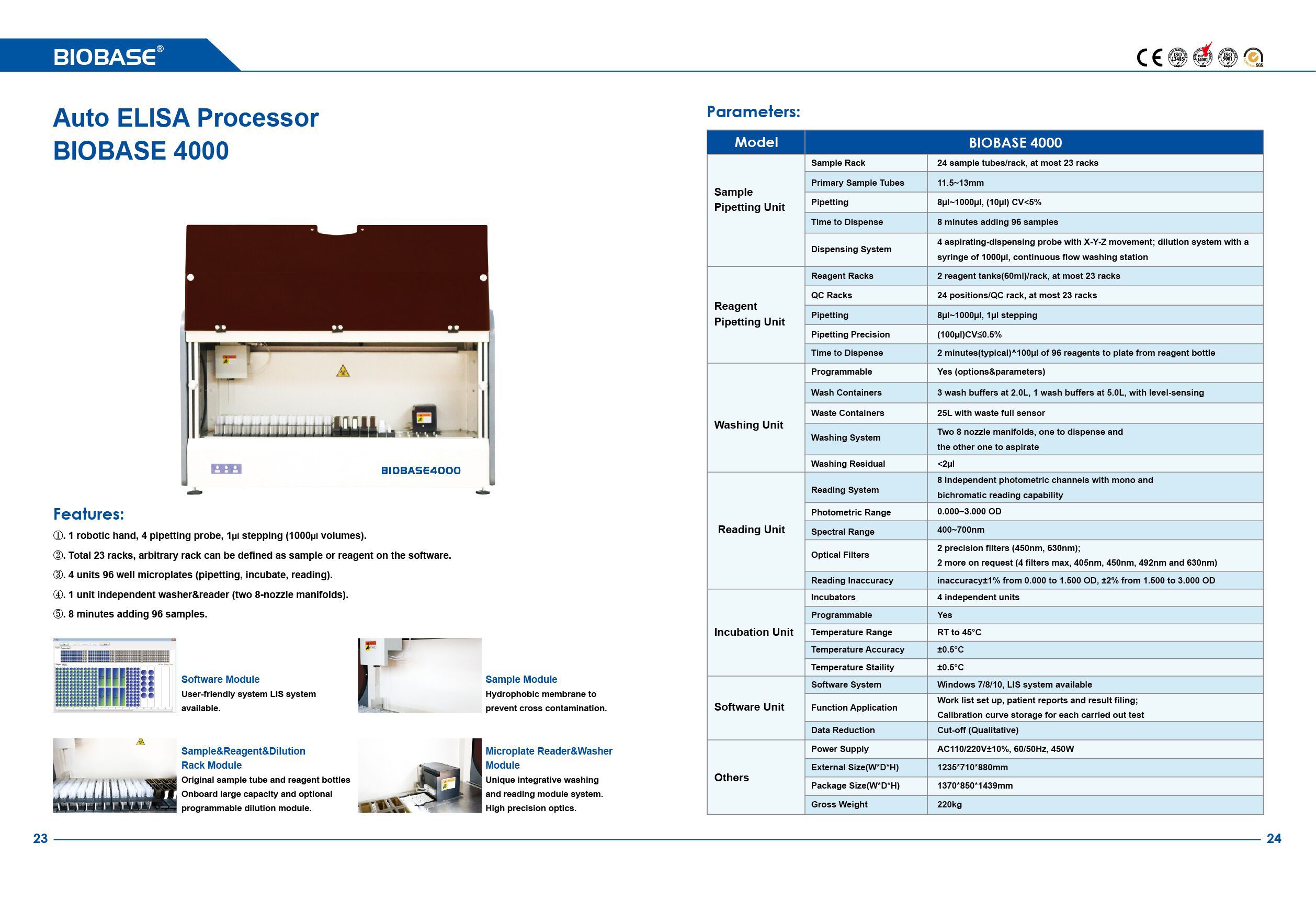

Brochure
