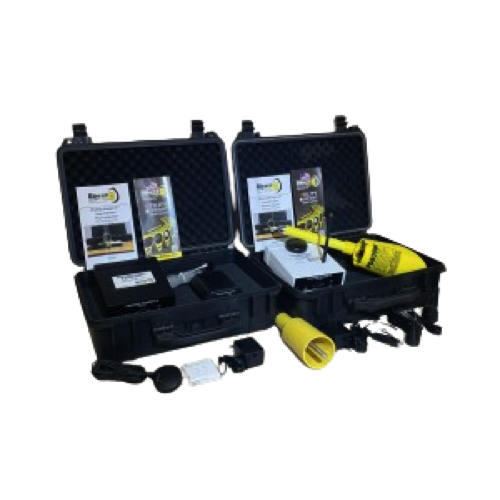

Complete Kit Includes:
Send unit (base)
Field unit (receive)
Meter probe
Auto answer
Hardware
Manual
Two cases
Function: Long-distance phase angle measurement, phase identification, and phase sequence testing
Operating Distance: Up to 1000 miles (long-distance transmission via communication link)
Voltage Range: 120/208V – 800kV
Measurement Capability:
Direct Contact: 240V – 69kV
Non-Contact: 69kV – 800kV
Measurement Functions:
Phase angle measurement (0°, 120°, 240°)
Phase sequence testing (ABC / CBA)
Delta/Wye transformation detection (DY indication)
Communication Method: Telephone line / cellular connection / Bluetooth data link between Send Unit and Receive Unit
Display / Indication:
Digital phase angle display on PD800W Meter Probe
LED indicators:
0°, 120°, 240° phase indication
DY (Delta/Wye) indication
Power Supply:
Send Unit: AC adapter (115V AC)
Receive Unit: Rechargeable battery
Meter Probe: 9V battery
