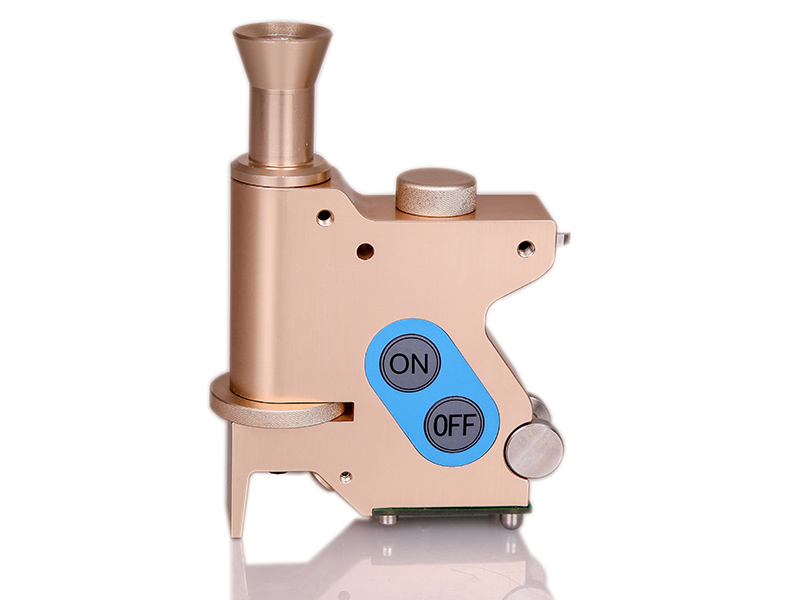

Bevs BEVS1707 ເຄື່ອງວັດແທກການກວດກາສີ (2-180μm; 10-900μm; 20-1800μm)

Cutter No.1:

Cut Angle: 45°;

Range (μm): 20-1800;

D Factor (μm): 20

Cutter No.2:

Cut Angle: 63.4°;

Range (μm): 10-900;

D Factor (μm): 10

Cutter No.3:

Cut Angle: 84.3°;

Range (μm): 2-180;

D Factor (μm): 2

Accessories:

BEVS 1707/P/010             Cutter No.1

BEVS 1707/P/020             Cutter No.2

BEVS 1707/P/030             Cutter No.3

Introduction:

BEVS1707 PIG is using destructive method to measure coating thickness, containing single and multiple coats, applied on all of substrates, e.g.:aluminum, iron, plastic, wood, concrete, glass etc.

Using Principle:

A cut is made on the test surface with a V-shaped tool.The coating thickness can be measured with the built-in microscope underthe LED light.

Order Information:

BEVS 1707 Paint Inspection Gauge, including 3 x cutters (No. 1, 2 and 3 each), 1 x battery, 1 x marker pen and 1 x carrying case
