Bevs BEVS 2811 Multifunction Abraser (20-155mm, 0~70 ± 1spm)

Stroke: 20-155mm, ± 5mm

Speed: 0~70 ± 1spm

Load: 9 ± 0.2N

Dimension: L 571 × W 260 × H 360mm

Power supply: 110V/220V; 50/60HZ

Power: 200W

Overview：

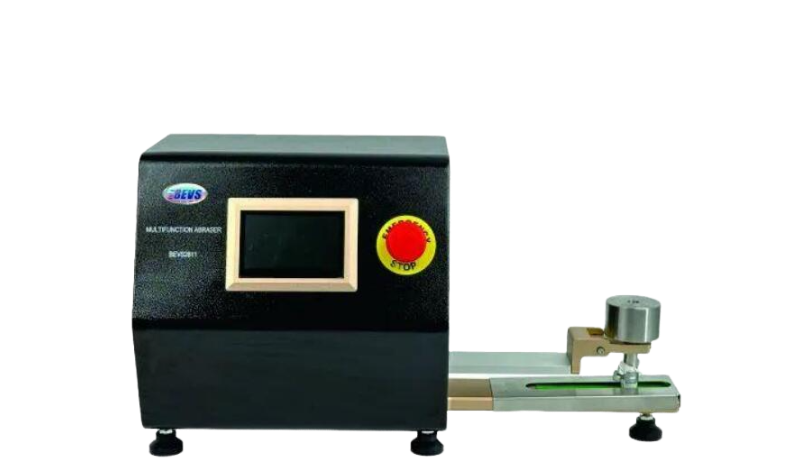

BEVS 2811 Multifunction Abraser is a multifunctional testing equipment that can test the abrasion and wear resistance of coatings, plastics, decorative fabrics, automotive interiors, pile fabrics, etc. The equipment controls and displays the test process through the LCD screen, and can set parameters such as the number of reciprocating wear, movement stroke, and reciprocating speed according to user needs. The friction arm design can achieve replacement of different friction heads. In addition, Multifunction Abraser is also equipped with cycle counting to meet the needs of testing under different conditions. The test head can be placed with weights of different weights, and weights can be added according to test requirements to test the wear of the sample under different loads. This instrument can be used in many industries, such as clothing, footwear and industrial-related fabrics.

Features:

4.3-inch LCD display, touch screen operation

Adjustable stroke

Adjustable speed

Can replace fixtures and platform for different tests

Adjustable load

Order information:

BEVS 2811 Multifunction Abraser

Datasheet
