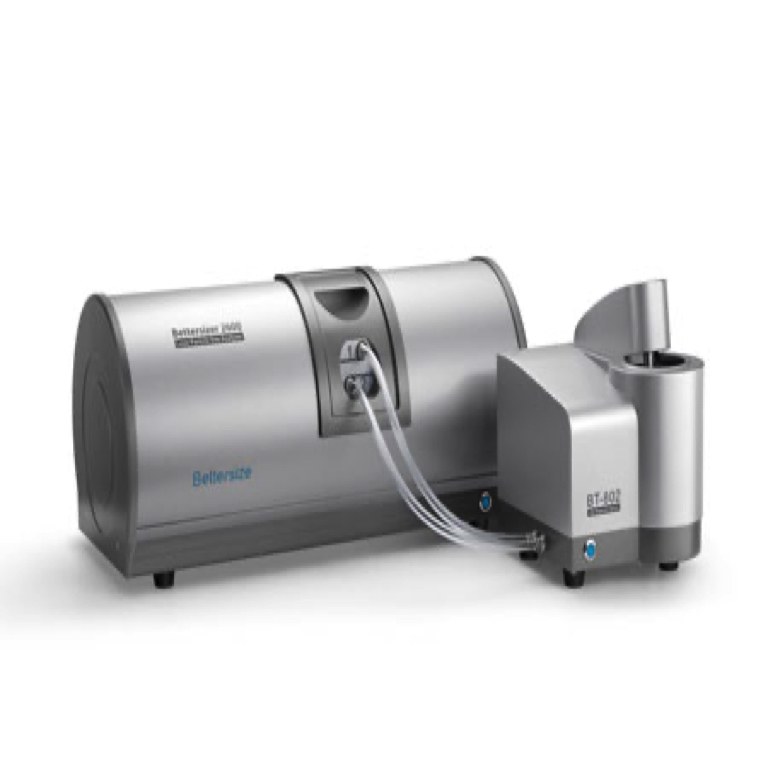

Bettersize 2600 ເຄື່ອງວິເຄາະຂະໜາດອະນຸພາກເລເຊີ (0.02 - 2600 μm, 0.1 - 2600 μm)
Particle size distribution: Suspensions, emulsions, dry powders
General
Principle: Laser diffraction technology
Analysis: Mie scattering theory and Fraunhofer diffraction theory
Typical measurement time: Less than 10 seconds
Measurement performance
Measuring range:
0.02 - 2600 μm (wet)
0.1 - 2600 μm (dry)
Accuracy error: ≤ 0.5%
Repeatability: ≤ 0.5%
Number of size classes: 100 (user adjustable)
Feeding mode:
Automatic circulation or micro cuvette (wet)
Gas transportation (dry)
Special functions: SOP settings, refractive index measurement, sample ratio calculation
Main device
Optical system: Combined Fourier and inverse Fourier & Tilted sample cell
Laser: High-power optical fiber laser (10 mW / 635 nm)
Laser class: Class 1 laser product
Detector: 92 detectors (forward, lateral and backward arrangements)
Measuring angle: 0.016 - 165°
Wet dispersion module
Measurement method: One-click operation (automated measurement, cleaning, saving, printing, etc.)
Dispersion medium: Water or organic solvents (sample dependent)
Circulation speed: 500 - 2500 r / min
Ultrasonication: Dry burning prevention，50 W
Dry dispersion module
Dispersion medium: Air / Nitrogen / Noble gas
Air pressure: 0.1 - 0.8 MPa (Air compressor dependent)
Software
Conformity: 21 CFR Part 11, ISO 13320, USP <429>, CE
Reports: Customizable reporting
System parameters
Dimensions (L x W x H): 70.5 x 31.8 x 29.5 cm
Weight: 23 kg
Supply voltage: 100 / 240 V, 50 / 60 Hz
Computer configuration (recommended)
Computer interface: At least one high-speed USB 2.0 or USB 3.0 port required
Operating system: Windows 7 (32 bit and 64 bit) or higher
Hardware specification: Intel Core i5 Processor, 4GB RAM, 250GB HD, Wide screen monitor
