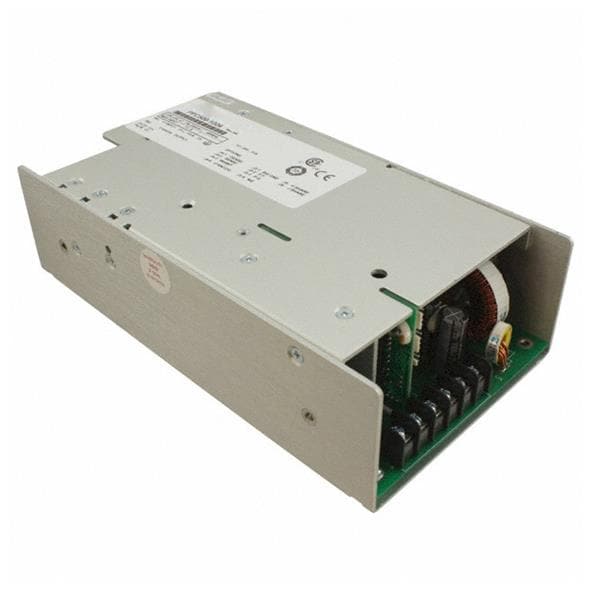

Bel Power Solutions PFC500-1024G ຕົວແປປະຕິບັດ AC-DC ພາວເອີ

Width: 127 mm (5 in)

Height: 63.5 mm (2.5 in)

Length: 228.6 mm (9 in)

Industry: Industrial

Approvals: EN60950-1, IEC60950-1, UL/CSA60950-1

Compliance: EN60950-1, IEC60950-1, UL/CSA60950-1

Efficiency: 75 %

Output Power: 500 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 2.6 kVDC

Number of Outputs: 1 Output

Power - Forced Air: 500 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 21 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
