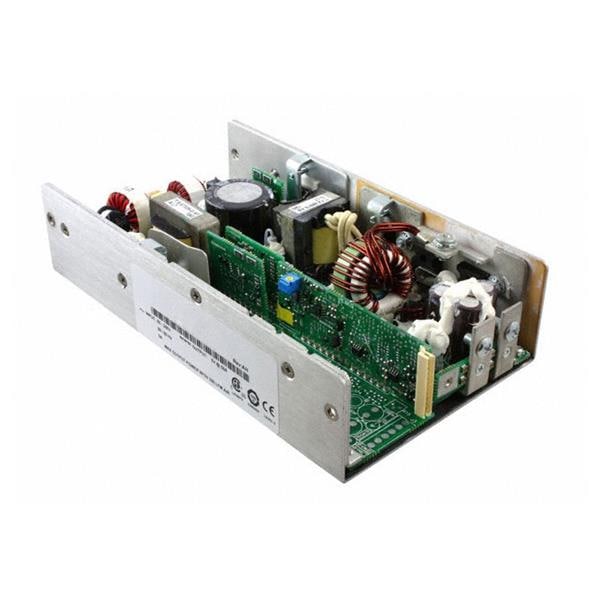

Bel Power Solutions PFC250-1015G ຕົວແປປະຕິບັດ AC-DC BEL POWER

Width: 120.7 mm (4.752 in)

Height: 50.8 mm (2 in)

Length: 215.9 mm (8.5 in)

Industry: Industrial

Approvals: EN60950-1, IEC60950-1, UL/CSA60950-1

Compliance: EN60950-1, IEC60950-1, UL/CSA60950-1

Efficiency: 75 %

Output Power: 250 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 2.6 kVDC

Number of Outputs: 1 Output

Power - Forced Air: 250 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 18.3 A

Output Voltage-Channel 1: 15 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
