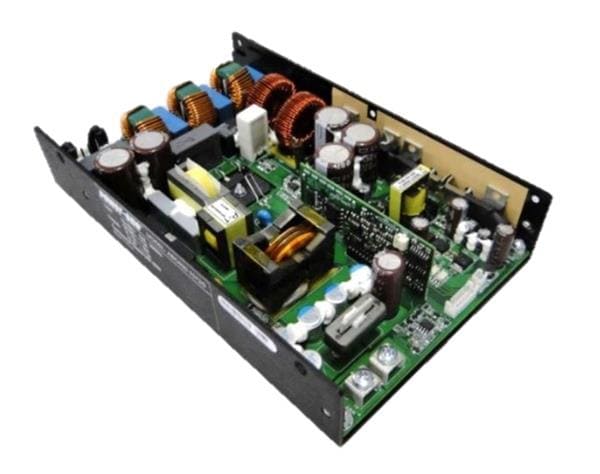

Bel Power Solutions MBC600-1036G ອະຊີ-ດີຊີ ແປງພະລັງງານ ພາວເຊີ AC-DC

Width: 127 mm (5 in)

Height: 40.64 mm (1.6 in)

Length: 203.2 mm (8 in)

Industry: Medical

Approvals: ANSI/AAMI ES60601-1, CSA/UL60601-1, EN60601-1, IEC60601-1

Compliance: ANSI/AAMI ES60601-1, CSA/UL60601-1, EN60601-1, IEC60601-1

Unit Weight: 1 kg

Output Power: 600 W

Input Voltage: 90 VAC to 277 VAC, 120 VDC to 240 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Power - Convection: 420 W

Power - Forced Air: 600 W

Open Frame/Enclosed: Open Frame

Output Voltage-Channel 1: 36 VDC

Operating Temperature Range: - 25 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
