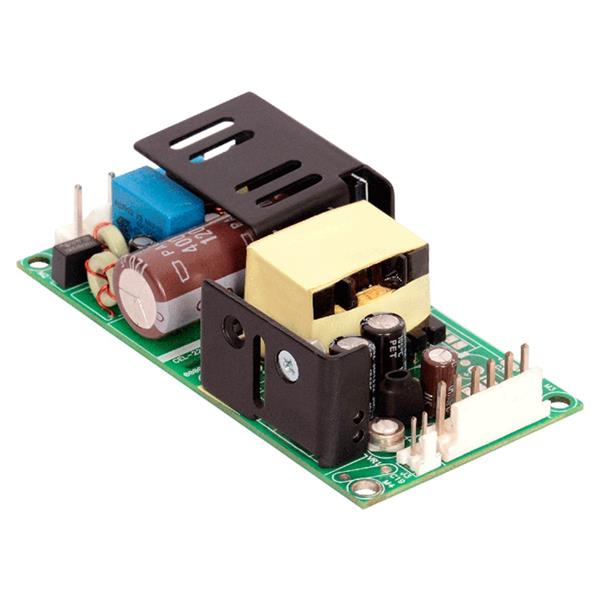

Bel Power Solutions MBC40-3001G ແປງກຳລັງສະຫນອງກຳລັງ 40W 5.2/24/-12.8V @ 6/1.5/0.5A ທາງການແພດ

Width: 50.8 mm

Height: 30.48 mm

Length: 101.6 mm

Industry: Medical

Approvals: EN60601-1

Compliance: EN60601-1

Unit Weight: 150 g

Output Power: 40 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Number of Outputs: 3 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 6 A

Output Current-Channel 2: 1.5 A

Output Current-Channel 3: 500 mA

Output Voltage-Channel 1: 5.2 VDC

Output Voltage-Channel 2: 24 VDC

Output Voltage-Channel 3: - 12.8 VDC
