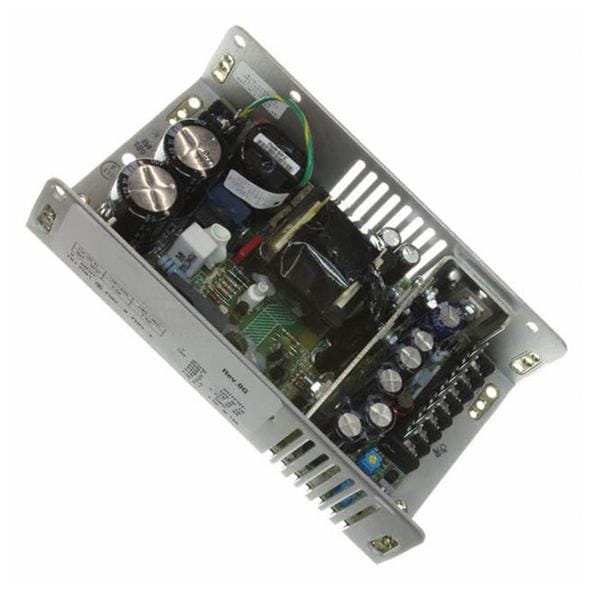

Bel Power Solutions MAP80-1024G ຕົວແປປະຕິບັດ AC-DC ພາວເອີ

Width: 106.7 mm (4.201 in)

Height: 45.7 mm (1.799 in)

Length: 182.9 mm (7.201 in)

Industry: Industrial

Approvals: EN60950-1, IEC60950-1, UL/CSA60950-1

Compliance: EN60950-1, IEC60950-1, UL/CSA60950-1

Efficiency: 73 %

Output Power: 80 W

Input Voltage: 90 VAC to 135 VAC, 175 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.242 kVDC

Number of Outputs: 1 Output

Power - Convection: 75 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 3.2 A, 3.8 A

Output Voltage-Channel 1: 24 VDC, 28 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
