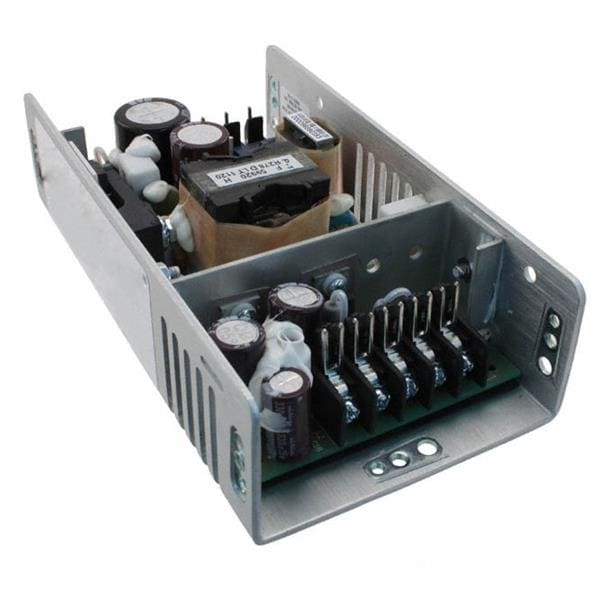

Bel Power Solutions MAP55-1012G ຕົວແປປະຕິບັດ AC-DC ພາວເອີ

Width: 83.1 mm (3.272 in)

Height: 40.6 mm (1.598 in)

Length: 152.4 mm (6 in)

Industry: Industrial

Approvals: EN60950-1, IEC60950-1, UL/CSA60950-1

Compliance: EN60950-1, IEC60950-1, UL/CSA60950-1

Efficiency: 73 %

Unit Weight: 612.575 g

Output Power: 55 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.242 kVDC

Number of Outputs: 1 Output

Power - Convection: 50 W

Power - Forced Air: 60 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 4 A, 5 A

Output Voltage-Channel 1: 12 VDC, 15 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
