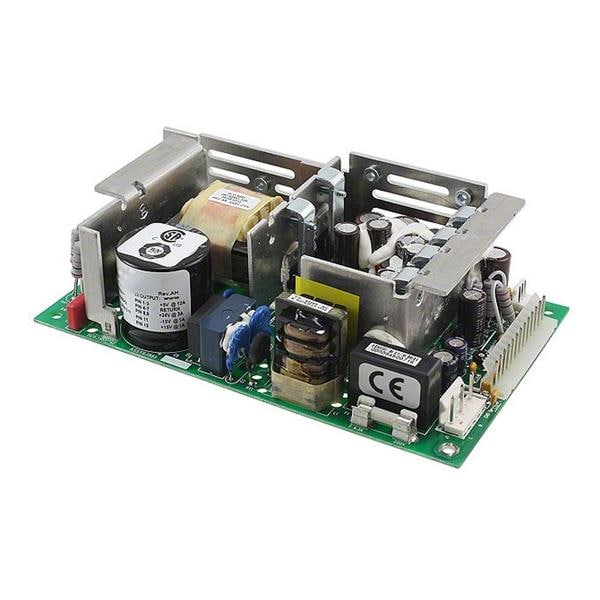

Bel Power Solutions MAP110-4000G ຕົວແປປະຕິບັດ AC-DC ພາວເອີ

Width: 109.2 mm (4.299 in)

Height: 50 mm (1.969 in)

Length: 177.8 mm (7 in)

Industry: Industrial

Approvals: EN60950-1, IEC60950-1, UL/CSA60950-1

Compliance: EN60950-1, IEC60950-1, UL/CSA60950-1

Efficiency: 70 %

Unit Weight: 788.045 g

Output Power: 110 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.242 kVDC

Number of Outputs: 4 Output

Power - Convection: 80 W

Power - Forced Air: 110 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 20 A

Output Current-Channel 2: 9 A

Output Current-Channel 3: 1 A, 1.5 A

Output Current-Channel 4: 1 A, 1.5 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Output Voltage-Channel 3: - 12 VDC

Output Voltage-Channel 4: - 5 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
