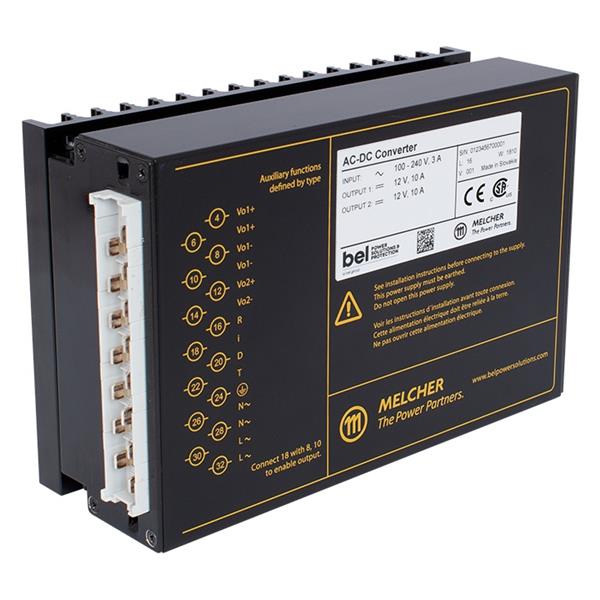

Bel Power Solutions LRP2540-9 ອະຊີ-ດີຊີ ແປງພະລັງງານ ເພາະພະລັງ ACDC Cassette

Width: 111 mm (4.37 in)

Height: 60 mm (2.362 in)

Length: 168 mm (6.614 in)

Industry: Industrial

Approvals: IEC/EN60950-1, UL/CSA60950-1

Compliance: IEC/EN 60950-1, UL/CSA 60950-1

Output Power: 300 W

Input Voltage: 90 VAC to 264 VAC, 120 VDC to 300 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 2.84 kVDC

Number of Outputs: 2 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 10 A

Output Current-Channel 2: 10 A

Output Voltage-Channel 1: 15 VDC

Output Voltage-Channel 2: 15 VDC

Operating Temperature Range: - 40 C to + 71 C

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 40 C
