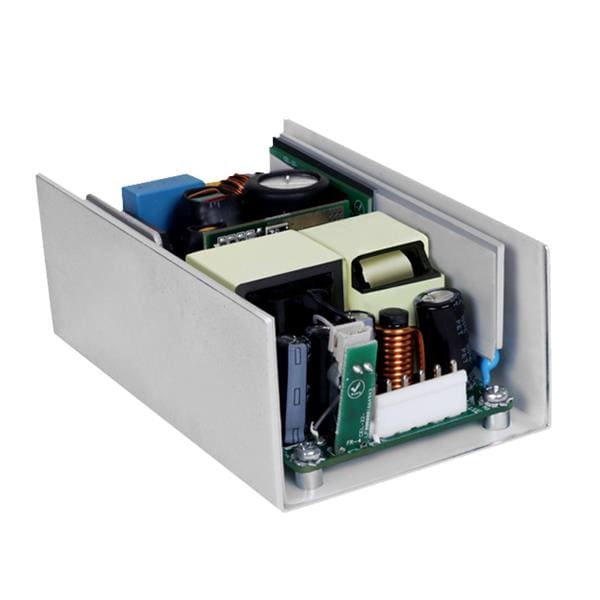

Bel Power Solutions EPG300-1012-U ອະຊີ-ດີຊີ ພາວເອີ ພາວເອີ EPG300-1012-U

Width: 50.8 mm (2 in)

Height: 36.4 mm (1.433 in)

Length: 101.6 mm (4 in)

Industry: Industrial

Dimensions: 101.6 mm x 50.8 mm x 36.4 mm

Efficiency: 94 %

Unit Weight: 300 g

Output Power: 300 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: PCB

Load Regulation: Regulated

Isolation Voltage: 4 kVDC

Number of Outputs: 1 Output

Power - Convection: 200 W

Power - Forced Air: 300 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 20.84 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
