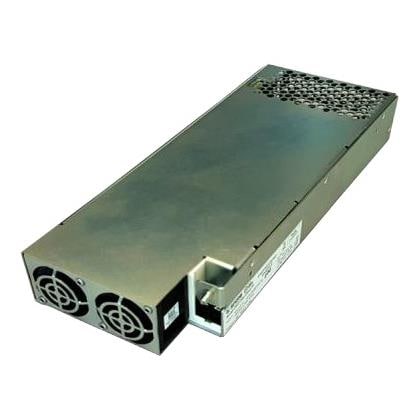

Bel Power Solutions ABE1200-1T24 AC-DC Converter POWER SUPPLY;ABE1200-1T24;AC-DC;IN 100to240V;OUT 24V;50A;1200W;ປົກກັນພັນລະຫັດພາຍໜ້າ;4.00"x10.4"x1.61";ຕົວຕິດສະຕູດ

Width: 101.6 mm (4 in)

Height: 41 mm (1.614 in)

Length: 264.1 mm (10.398 in)

Industry: Industrial

Approvals: CB, CE, CSA, IEC, UL

Dimensions: 264.1 mm x 101.6 mm x 41 mm

Efficiency: 94 %

Output Power: 1.2 kW

Input Voltage: 85 VAC to 305 VAC, 120 VDC to 300 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 50 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
