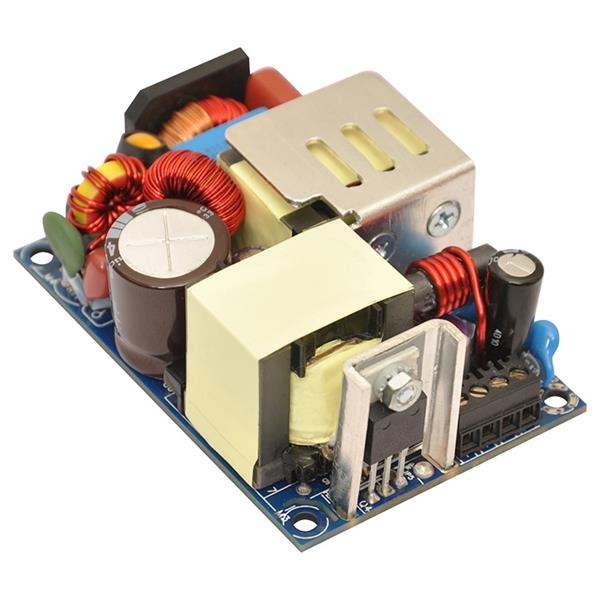

Bel Power Solutions ABC120-1T48L ພາບພະລັງ POWER SUPPLY

Width: 50.8 mm (2 in)

Height: 30.1 mm (1.185 in)

Length: 76.2 mm (3 in)

Industry: Industrial

Approvals: Class1 SELV, CSA/UL60950-1, EN60950-1, IEC60950-1

Compliance: Class1 SELV, CSA/UL60950-1, EN60950-1, IEC60950-1

Efficiency: 93 %

Output Power: 120 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 100 W

Power - Forced Air: 120 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 2.5 A

Output Voltage-Channel 1: 48 VDC

Operating Temperature Range: - 40 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
