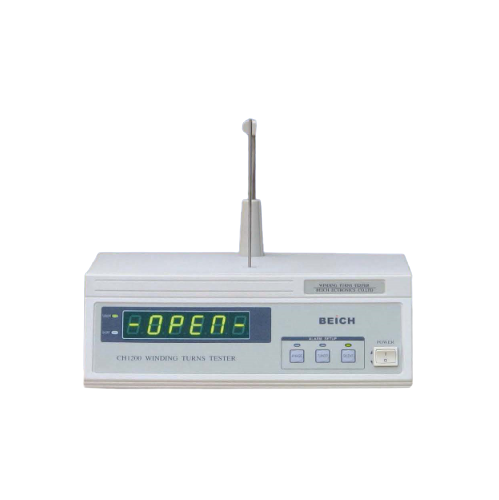

Beich CH1200 Winding Turns Tester (1~30000)
Sensor type: Ф9.5; Ф6; Ф4
Winding shape: Inner dimension >Ф4mm; Outer dimension <120mm; Height <110mm
Winding measurement range: 1~30000
Winding measurement accuracy: 1~500circle±1circle; 500~30000circle±0.3%
Winding basic measurement speed: Slow: 1.5measurements/second
Resistance measurement range: No
Resistance basic measurement speed: No
Resistance measurement accuracy: No
Range mode: Auto selection
Display mode: 6-digit LED
Alarm selection: Short-circuit, phase, quite
Dimensions (WxHxD): 335mmx320mmx290mm
Weight: Approx. 6kg
Working temperature & humidity: 0°C~40°C, ≤90%RH
Power requirement: 198-242VAC 47.5~52.5Hz
Power consumption: ≤30VA
Note: to ensure measurement accuracy, sensor of Ф9.5 type is recommended when inner diameter of winding under test is more than 30mm
