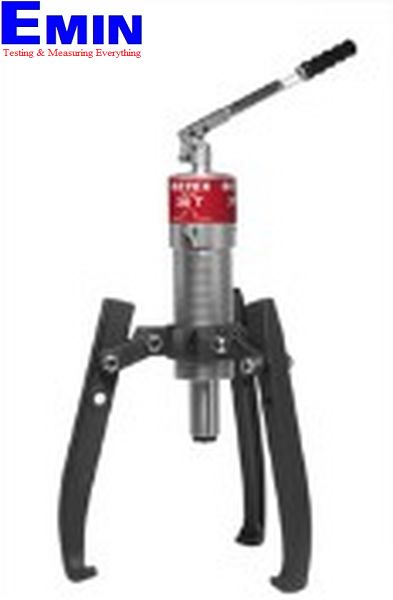

BETEX HP 2/3 ARM PULLER with integrated pump and cylinder in pratical PE case
Compact, ergonomic design, easily operated by one person!
Multifunctional:
These HP-pullers are ideal for pulling a wide variety of parts, including bearings, bushings, wheels, gears and pulleys. Applications for HP-pullers will be found in motor repair shops, service companies, maintenance shops, industry, mining, paper mills, chemical plants, shipping, offshore, etc.
Compact:
The self contained hydraulic pump and cylinder save space, as you don’t need a separate pump, hose or puller.
Strong!
The harder the force, the tighter the jaws grip. The arms cannot bend or deflect.
Economical!
2/3-arm combination puller, 2 pullers for the price of one, including integrated pump and cylinder!
Safe!
The improved integral safety release valve prevents overloading and ensures that you will never exceed the maximum power capacity.
Versatile!
Various accessories are available. Sets are supplied in practical PE case and consist of a puller block, connecting rods and a set of bearing splitters.
Type | Capacity | Shaft lenght | Spread | Stroke |
HP43 | 4 ton | 185 mm | 275 mm | 60 mm |
HP63 | 6 ton | 215 mm | 300 mm | 85 mm |
HP83 | 8 ton | 230 mm | 350 mm | 85 mm |
HP123 | 12 ton | 270 mm | 375 mm | 85 mm |
HP203 | 20 ton | 360 mm | 520 mm | 111 mm |
HP303 | 30 ton | 360 mm | 550 mm | 111 mm |
