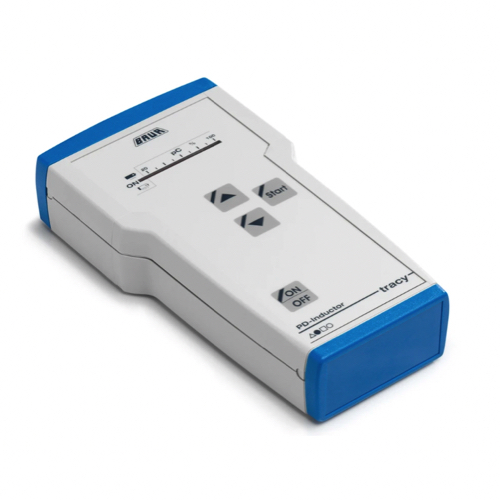

BAUR tracy Inductor ລົງຂາວບາງສ່ວນ (DC 4.8 – 12 V, 800 mA)
Technical data
General:
Pulse width: Approx. 25 ns
Pulse rate: 20 ms – 5.1 s (in 20-ms steps)
Battery type: Ni-MH rechargeable battery pack
Battery life: Approx. 20 h
Charging time: Approx. 4 h
Charger:
Power supply: 100 – 240 V, 50/60 Hz
Output voltage: DC 4.8 – 12 V, 800 mA
Ambient temperature (operational): -10°C to +50°C
Storage temperature: -20°C to +60°C
Relative humidity: Non-condensing
Dimensions (W x H x D): Approx. 110 x 213 x 42 mm
Weight: Approx. 0.55 kg
Degree of protection: IP54
Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
Standard delivery:
Tracy partial discharge inductor in transport case incl.:
Rechargeable battery pack
Charger incl. country-specific adapter
Induction cable, blue
User manual
