Tracing and cable fault location:
Output power:
In mains operation: 0 – 50 VA
In battery mode: 0 – 20 VA
Max. output current: 8 A
Frequencies: Switchable between 2 frequencies*:
2 kHz ±0.1% distortion factor ≤1.5% @ 4 VA
10 kHz ±0.1% distortion factor ≤3% @ 4 VA
Output impedance: On 7 levels: 1 / 3 / 10 / 30 / 100 / 300 / 1,000 Ω Automatic or manual adjustment
General:
Power supply:
Mains voltage:
110 – 120 V, 50/60 Hz
220 – 230 V, 50/60 Hz
240 V, 50/60 Hz
Integrated batteries: 12 V, 12 Ah
External supply: DC 12 – 24 V (reverse polarity protection)
Battery life: Approx. 3.2 h @ 20 VA
Charger (integrated): Overcharge protection – when connected to the mains, the batteries are charged in each operating mode Deep discharge protection: Device switch off in the event of deep battery discharge
Dimensions (W x H x D): Approx. 290 x 130 x 250 mm
Weight: Approx. 9.5 kg
Ambient temperature (operational): -20 to +50°C
Safety and EMC: CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
Standard delivery

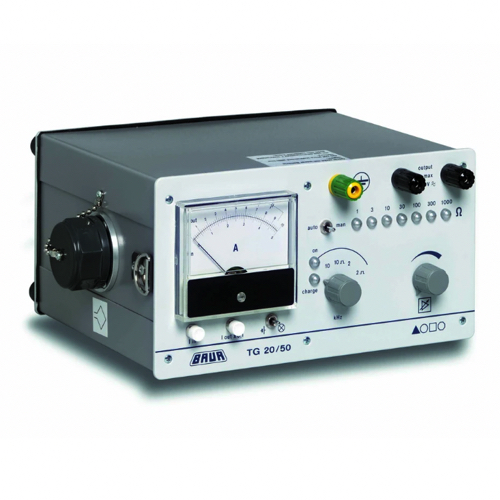

▪ TG 20/50 audio frequency transmitter
▪ Carrying strap, adjustable
▪ Mains supply cord, 2.5 m
▪ Earth cable, 3 m, with earth terminal
▪ Connection cables, red and black, touch-proof, 2 m each,
with connection clips
▪ User manual
