Output voltage:
Max. DC voltage: 16 kV
Surge voltage: 4 / 8 / 16 kV
Switchable to: 3 / 6 / 12 kV (56% of the surge energy)
Surge energy:
512 J @ 4 / 8 / 16 kV
288 J @ 3 / 6 / 12 kV
Max. output current (in DC mode):
Depending upon the position of the step selector switch:
DC 480 mA @ 4 kV position
DC 240 mA @ 8 kV position
DC 120 mA @ 16 kV position
Surge sequence: 10 or 20 pulses/min
Display range of the voltmeter:
0 – 4 kV
0 – 8 kV
0 – 16 kV
Accuracy of the voltmeter: 1.5%
General:
Power supply: 220 – 230 V, 50/60 Hz
Options:
110 – 120 V, 50/60 Hz (with external auto transformer)
240 V, 50/60 Hz (with conversion kit for mains supply)
Max. power consumption: 1,500 VA (in the event of short circuit)
Ambient temperature (operational): -10°C to +50°C
Storage temperature: -20°C to +60°C
Dimensions (W x H x D): Approx. 500 x 290 x 390 mm
Weight: Approx. 48 kg
Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing
Standard delivery:

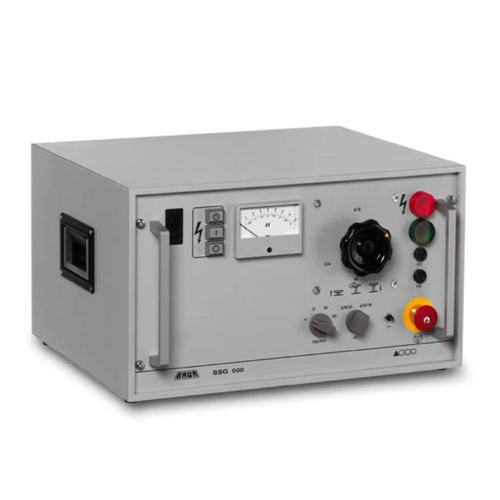

BAUR SSG 500 surge voltage generator, inc. 5 m HV connection cable
Earth cable, 3 m, with earth terminal
Mains supply cord, 2.5 m
User manual
